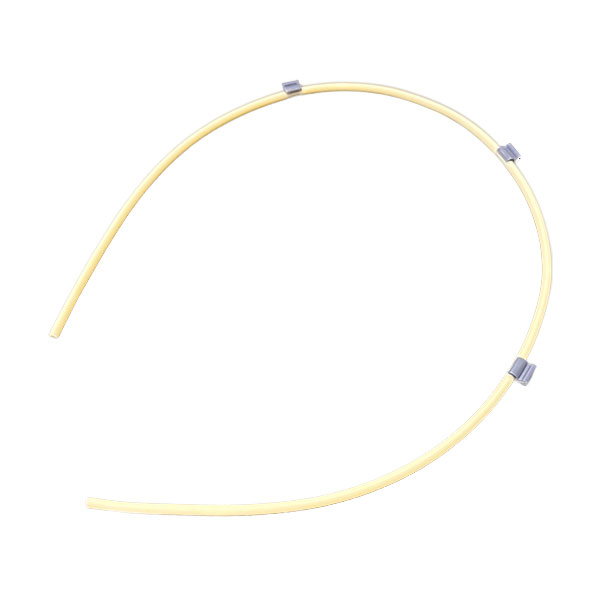

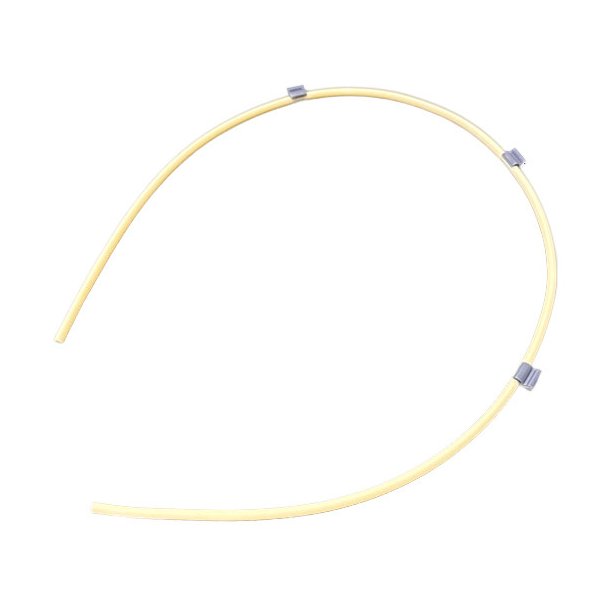

Representative image only

Innovalloy 4000 3-stop pump tubing

EUR 377.60

(excl. VAT)

Innovalloy 4000 is a chemical resistant peristaltic pump tubing designed for stable and reliable fluid transfer. The tubing features low permanent compression deformation and a double-layer structure with a corrosion-resistant inner layer.

  • Chemical resistant peristaltic pump tubing
  • Double-layer structure with corrosion-resistant inner layer
  • Low permanent compression deformation for stable flow
  • Resistant to strong acids, alkalis, and organic solvents
  • 3 stops (three-stop tubing) with a 72.5 mm stop distance
  • Length: 406 mm
  • Operating temperature from -50 °C to +80 °C
  • Packaging size: 12 pcs/bag

The product can be ordered even if it is not in stock, with an expected delivery time of approximately 2–3 weeks.

Read more
Innovalloy 4000 3-stop pump tubing
Items

Price
Note
Quantity
  • orange-black-orange: ID 0.13 mm, OD 1.93 mm, WT 1.90 mm, L 406 mm

    Size: orange-black-orange: ID 0.13 mm, OD 1.93 mm, WT 1.90 mm, L 406 mm

    Model/Product no.: A46M-3VB-0013-0193

    EUR 377.60

    (excl. VAT)

    Not in stock

    Weight: 0.2 kg

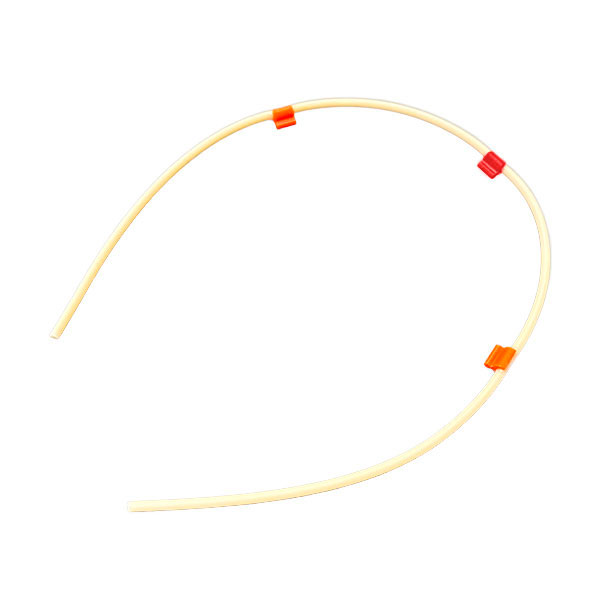

  • orange-red-orange: ID 0.19 mm, OD 1.99 mm, WT 0.90 mm, L 406 mm

    Size: orange-red-orange: ID 0.19 mm, OD 1.99 mm, WT 0.90 mm, L 406 mm

    Model/Product no.: A46M-3VB-0019-0199

    EUR 377.60

    (excl. VAT)

    Not in stock

    Weight: 0.2 kg

  • orange-blue-orange: ID 0.25 mm, OD 2.05 mm, WT 0.90 mm, L 406 mm

    Size: orange-blue-orange: ID 0.25 mm, OD 2.05 mm, WT 0.90 mm, L 406 mm

    Model/Product no.: A46M-3VB-0025-0205

    EUR 377.60

    (excl. VAT)

    Not in stock

    Weight: 0.2 kg

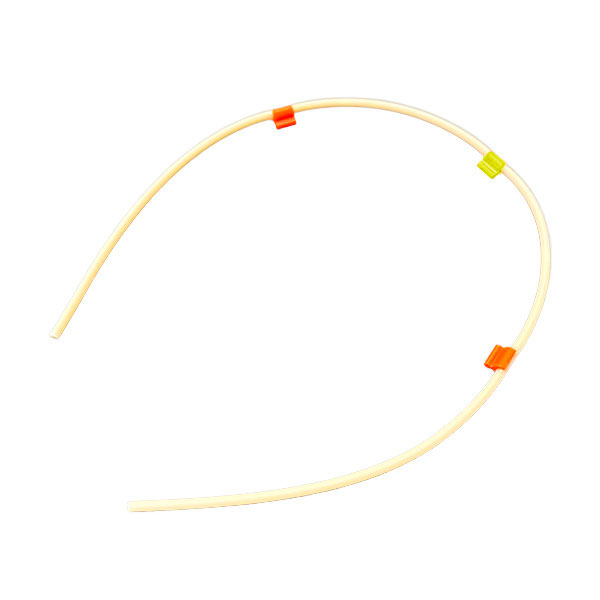

  • orange-yellow-orange: ID 0.51 mm, OD 2.31 mm, WT 0.90 mm, L 406 mm

    Size: orange-yellow-orange: ID 0.51 mm, OD 2.31 mm, WT 0.90 mm, L 406 mm

    Model/Product no.: A46M-3VB-0051-0231

    EUR 377.60

    (excl. VAT)

    Not in stock

    Weight: 0.2 kg

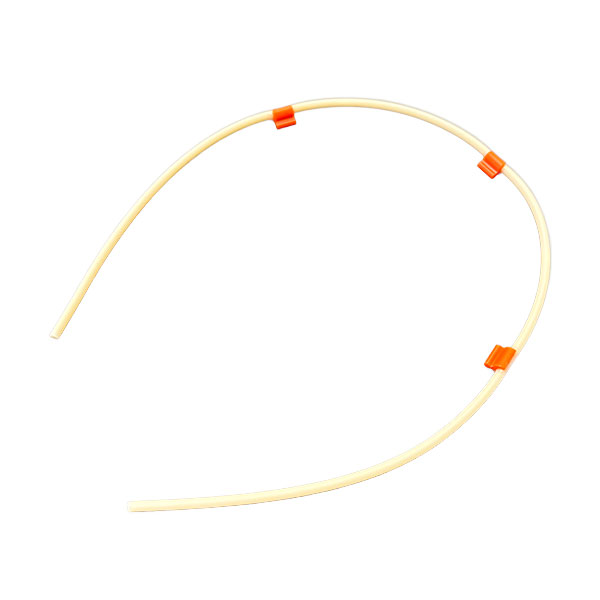

  • orange-orange-orange: ID 0.89 mm, OD 2.59 mm, WT 0.85 mm, L 406 mm

    Size: orange-orange-orange: ID 0.89 mm, OD 2.59 mm, WT 0.85 mm, L 406 mm

    Model/Product no.: A46M-3VB-0089-0259

    EUR 377.60

    (excl. VAT)

    Not in stock

    Weight: 0.2 kg

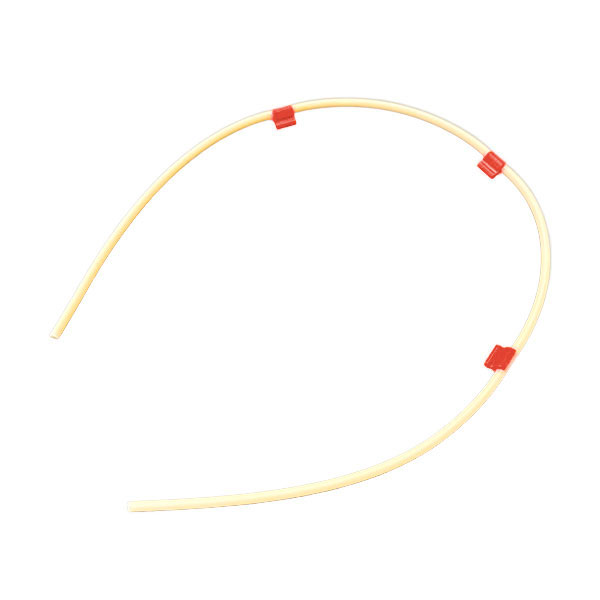

  • red-red-red: ID 1.14 mm, OD 2.84 mm, WT 0.85 mm, L 406 mm

    Size: red-red-red: ID 1.14 mm, OD 2.84 mm, WT 0.85 mm, L 406 mm

    Model/Product no.: A46M-3VB-0114-0284

    EUR 377.60

    (excl. VAT)

    Not in stock

    Weight: 0.2 kg

  • grey-grey-grey: ID 1.30 mm, OD 3.00 mm, WT 0.85 mm, L 406 mm

    Size: grey-grey-grey: ID 1.30 mm, OD 3.00 mm, WT 0.85 mm, L 406 mm

    Model/Product no.: A46M-3VB-0130-0300

    EUR 377.60

    (excl. VAT)

    Not in stock

    Weight: 0.2 kg

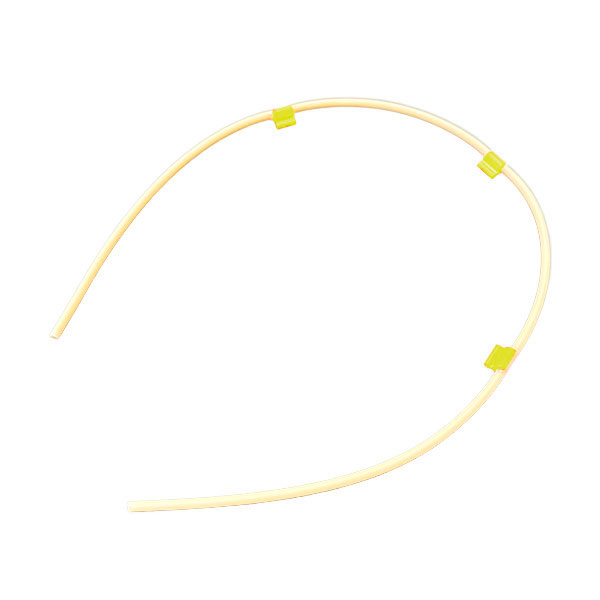

  • yellow-yellow-yellow: ID 1.42 mm, OD 3.12 mm, WT 0.85 mm, L 406 mm

    Size: yellow-yellow-yellow: ID 1.42 mm, OD 3.12 mm, WT 0.85 mm, L 406 mm

    Model/Product no.: A46M-3VB-0142-0312

    EUR 377.60

    (excl. VAT)

    Not in stock

    Weight: 0.2 kg

  • yellow-yellow-yellow: ID 1.42 mm, OD 3.12 mm, WT 0.85 mm, L 350 mm

    Size: yellow-yellow-yellow: ID 1.42 mm, OD 3.12 mm, WT 0.85 mm, L 350 mm

    Model/Product no.: A46M-3GB-0142-0312

    EUR 377.60

    (excl. VAT)

    1 pcs. in stock

    Weight: 0.2 kg

  • purple-purple-purple: ID 2.06 mm, OD 3.76 mm, WT 0.85 mm, L 406 mm

    Size: purple-purple-purple: ID 2.06 mm, OD 3.76 mm, WT 0.85 mm, L 406 mm

    Model/Product no.: A46M-3VB-0206-0376

    EUR 377.60

    (excl. VAT)

    Not in stock

    Weight: 0.2 kg

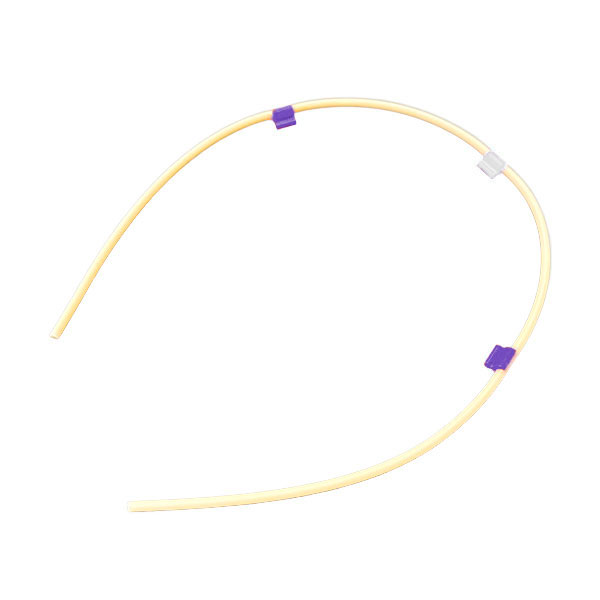

  • purple-white-purple: ID 2.79 mm, OD 4.49 mm, WT 0.85 mm, L 406 mm

    Size: purple-white-purple: ID 2.79 mm, OD 4.49 mm, WT 0.85 mm, L 406 mm

    Model/Product no.: A46M-3VB-0279-0449

    EUR 377.60

    (excl. VAT)

    Not in stock

    Weight: 0.2 kg

Innovalloy 4000 chemical resistant pump tubing with 3 stops

Innovalloy 4000 is a chemical resistant peristaltic pump tubing designed for stable and reliable fluid transfer in peristaltic pumps. The series features low permanent compression deformation, allowing the tubing to rebound to its original shape during continuous long-term squeezing, supporting stable flow. The tubing uses a double-layer structure; the corrosion-resistant inner layer provides good resistance to strong acids, strong alkalis, and most organic solvents.

This version is supplied as 3-stop tubing (three-stop tubing) with a 72.5 mm stop distance.

Key features

  • Chemical resistant peristaltic pump tubing for chemical reagent transfer
  • Double-layer structure with a corrosion-resistant inner layer
  • Low permanent compression deformation for stable flow
  • Good resistance to strong acids, strong alkalis, and most organic solvents
  • Resistance to chemical swelling
  • No added plasticizer
  • Very low gas permeability
  • Long peristaltic pump life
  • 3-stop (three-stop tubing) with 72.5 mm stop distance

Technical specifications

  • Product series: Innovalloy® 4000
  • Color: Beige
  • Hardness: 70 Shore A
  • Density: 0.97
  • Operating temperature: -50 °C to +80 °C
  • Tensile strength at break: 7.2 MPa
  • Tensile elongation at break: 420%
  • Tear tensile strength: 22 kN/m
  • Permanent compression set (70 °C / 22 hrs): 25%
  • Embrittlement temperature: -60 °C
  • Stop distance: 72.5 mm
  • Length: 406 mm

Compliance / certifications

  • FDA 21 CFR 177.2600
  • RoHS
  • REACH

Applications

  • Chemical reagent delivery
  • Transfer of acids, alkalis, ketones, and alcohols
  • Laboratory chemical reagent transfer
  • Detergent and cleaner transfer
  • Gas transfer lines
  • Medical and pharmaceutical peristaltic pump applications

Compatibility

The 3-stop tubing with a 72.5 mm stop distance fits pump heads in the following series:

  • DG
  • AMC
  • MC
  • ISMATEC / Masterflex minicartridge pump heads, where the tubing is referred to as three-stop color-coded tubing

Documentation

  • Innovalloy® 4000 Peristaltic Pump Tubing datasheet
  • Innovapure® MBT Assembly (3-stop / stop distance)

Note: An overview of chemical resistance can be found in the Innovapure catalogue “Chemical Resistance Table”.
