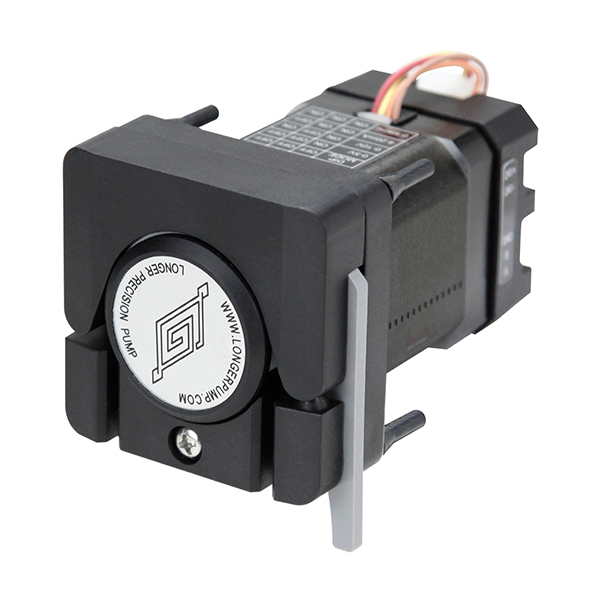

T100-SC01/WX10 OEM Peristaltic Pump with Integrated Driver

EUR 177.30

(excl. VAT)

The T100-SC01/WX10-14-H is a compact OEM peristaltic pump with an integrated driver and NEMA 17 stepper motor, designed for precise and stable liquid transfer. Ideal for panel mounting and OEM integration, where reliability and space efficiency are important. Supplied with WX10-14-H pump head (4 rollers) or WX10-18-H pump head (8 rollers).

Integrated driver with RS485 (Modbus RTU and Longer Pump OEM protocol)
Flow range up to 40 ml/min
Speed range 0–100 rpm
High-precision NEMA 17 stepper motor
Supplied with WX10-14-H (4 rollers) or WX10-18-H (8 rollers) pump head

The pump can be ordered even if it is not in stock. Expected delivery time is approx. 2–3 weeks.

T100-SC01/WX10 OEM Peristaltic Pump with Integrated Driver

Items

Price

Note

Quantity

Type: with WX10-14-H pump head with 4 rollers

Model/Product no.: T100-SC01/WX10-14-H

EUR 177.30

(excl. VAT)

approx. 3 weeks delivery

Weight: 0.47 kg
Type: with WX10-18-H pump head with 8 rollers

Model/Product no.: T100-SC01/WX10-18-H

EUR 177.30

(excl. VAT)

approx. 3 weeks delivery

Weight: 0.47 kg

OEM Peristaltic Pump T100-SC01/WX10 with Integrated Driver

The T100-SC01/WX10 is a compact OEM peristaltic pump with an integrated driver and NEMA 17 stepper motor, designed for precise and stable liquid transfer. The pump is intended for panel mounting and OEM integration, where space efficiency and operational reliability are essential. It supports communication via RS485 interface with Modbus RTU and Longer Pump OEM protocol. Supplied with WX10-14-H pump head (4 rollers) or WX10-18-H pump head (8 rollers), depending on application requirements.

Key features

Compact size and structure with integrated driver
RS485 communication control (Modbus RTU and Longer Pump OEM protocol)
Supplied with WX10-14-H pump head (4 rollers) or WX10-18-H pump head (8 rollers)
Configurable startup status
Panel mounting

Flow data

Flow range: up to 40 ml/min with WX10-14-H (4 rollers)
Flow range: lower maximum flow with WX10-18-H (8 rollers)
Speed range: 0–100 rpm
Tubing sizes: ID ≤ 3.17 mm, wall thickness 0.8–1 mm (WX10 series)

Technical specifications

Model: T100-SC01/WX10
Pump speed: 0–100 rpm
Speed resolution: 0.01 rpm (Modbus), 0.1 rpm (Longer OEM)
Pump heads: WX10-14-H (4 rollers) or WX10-18-H (8 rollers)
Power supply: DC24V/8W
Output: DC5V 10mA
Communication: RS485 interface
Communication parameters: Baud rate 1200/9600/19200/115200 bps, Parity None/Even, Pump address 1–32, Stop bit 1
Control functions: Speed, start/stop, direction and prime function (full speed) via RS485. Startup status can be configured
Dimensions: 94 × 59 × 67.5 mm
Weight: approx. 0.47 kg
Mounting method: Panel mounting
Operating conditions: 0–40 °C, relative humidity < 80 %

Warranty and documentation

The pump comes with a 1-year warranty and accompanying documentation, including technical drawings and user manual.

Videos

Instructional and presentation videos available on request.
