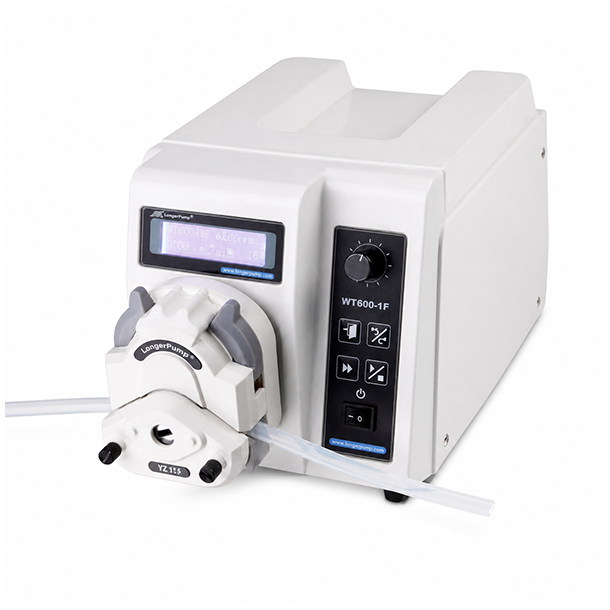

Representative image only

WT600-1F Peristaltic Dispensing Pump

Price from EUR 1,445.70 ~~EUR 2,065.30~~

(excl. VAT)

The WT600-1F dosing pump is primarily designed for laboratories and industrial production. It is equipped with a brushless motor suitable for driving several pump heads simultaneously or multi-channel pump heads.

The combination of LCD display, membrane keypad and rotary control makes operation simple and fast. The speed can be adjusted manually on the pump or automatically via an external control interface.

The housing design makes the WT600-1F easy to stack, which can be an advantage in laboratory environments where space is limited.

Speed: 10–600 rpm, reversible
Flow rate: 0.7–6000 ml/min per channel
Dispensing volume: 0.1 ml to 99.9 litres
Up to 3 pump heads can be mounted simultaneously
Programmable pause time for automatic dispensing

The pump can be ordered even if it is not in stock.
Expected delivery time is approx. 2-3 weeks.

WT600-1F Peristaltic Dispensing Pump

Items

Price

Note

Quantity

Pump Head: with YZII25 pump head with 1 channel and 3 rollers

Model/Product no.: WT600-1F/YZII25

EUR 1,445.70 ~~EUR 2,065.30~~

(excl. VAT)

in stock

Weight: 5.8 kg
Pump Head: with 2 pcs. YZII25 pump heads with 3 rollers

Model/Product no.: WT6001F/2*II25X3PESU

EUR 2,343.80

(excl. VAT)

approx. 3 weeks delivery

Weight: 6 kg
Pump Head: incl. KZ25 pump head with 1 channel and 3 rollers

Model/Product no.: WT600-1F/KZ25

EUR 2,244.10

(excl. VAT)

in stock

Weight: 6 kg
Pump Head: incl. YZ1515x PESU pump head with 1 channel and 3 rollers

Model/Product no.: WT600-1F/YZ1515X3PES

EUR 2,065.30

(excl. VAT)

approx. 3 weeks delivery

Weight: 5.3 kg
Pump Head: incl. 2 pcs. YZ1515x PESU pump heads with 3 rollers

Model/Product no.: WT6001F/2YZ1515X3PES

EUR 2,343.80

(excl. VAT)

approx. 3 weeks delivery

Weight: 5.8 kg
Pump Head: incl. 3 pcs. YZ1515x PESU pump heads with 3 rollers

Model/Product no.: WT6001F/3*1515XPESU

EUR 2,622.40

(excl. VAT)

approx. 3 weeks delivery

Weight: 6.4 kg
Pump Head: with YZ2515x PESU pump head with 1 channel and 3 rollers

Model/Product no.: WT6001F/2515X3PPS

EUR 2,065.30

(excl. VAT)

approx. 3 weeks delivery

Weight: 5.3 kg
Pump Head: with 2 pcs. YZ2515x PESU pump heads with 3 rollers

Model/Product no.: WT6001F/2*2515X3PESU

EUR 2,343.80

(excl. VAT)

approx. 3 weeks delivery

Weight: 5.8 kg
Pump Head: with 3 pcs. YZ2515x PESU pump heads with 3 rollers

Model/Product no.: WT6001F/3*2515X3PESU

EUR 2,622.40

(excl. VAT)

approx. 3 weeks delivery

Weight: 6.4 kg
Pump Head: with YZII15 pump head with 1 channel and 3 rollers

Model/Product no.: WT600-1F/YZII15X3PES

EUR 2,065.30

(excl. VAT)

approx. 3 weeks delivery

Weight: 5.8 kg
Pump Head: wirh 2 pcs. YZII15 pump heads with 3 rollers

Model/Product no.: WT6001F/2YZII15X3PES

EUR 2,343.80

(excl. VAT)

approx. 3 weeks delivery

Weight: 6 kg
Pump Head: with 3 pcs. YZII15 pump heads with 3 rollers

Model/Product no.: WT6001F/3*II15X3PESU

EUR 2,622.40

(excl. VAT)

approx. 3 weeks delivery

Weight: 6.4 kg

High Flow Rate Peristaltic Dispensing Pump

The LP-WT600-1F peristaltic dispensing pump is mainly designed for laboratory and industrial production. It uses a brushless motor and is suitable to drive multiple pump heads.
The LP-WT600-1F dispensing pump delivers flow rates from 0.7 ml to 6000 ml/min and the dispensing volume ranges from 0.1 ml to 99.9 l.
Combined LCD with membrane keypad and rotary encoded switch makes the operation of the dispensing pump easy and prompt. The speed can be adjusted manually or automatically through an external control interface.

Specifications

Flow rates: 0.7 to 6000 ml/min/channel
Speed: 10 to 600 rpm, reversible
Speed resolution: 1 rpm
Control mode: The speed can be adjusted manually with the rotary encoded switch combined with the membrane keypad, or automatically through the external signal and communication control.
Display: LCD displays current running status and parameters
Dispensing volume: 0.1 ml to 99.9 litres
Dispensing volume calibration: Calibrate dispensing volume to increase accuracy
Copy number: 0 to 9999, "0" means unlimited cycle
Pause time: 0.1 sec. to 99.9 min, resolution is 0.1 sec
Back suction: 0 to 9.9 cycle, resolution is 0.1 cycle
External control: Start/stop, cw/ccw control and speed control (0-5V, 0-10V, 4-20 mA, 0-10 kHz optional external control module)
Speed signal output: 166.7 Hz-10 kHz corresponding to 10-600 rpm
Start/stop signal output: OC gate signal output
Direction signal output: OC gate signal output
Communication interface: RS485
Memory function: Storing the running parameters automatically
Prime key: For fast filling and emptying

Operating Manual

Supplied with English operating manual

Parameters

Drive	Pump head	Tubing size #	Flow rate (ml/min/channel) at 10 - 600 rpm (measured with water)	Weight (kg)
LP-WT600-1F	(1, 2, 3 pcs) x LP-YZ1515x (3 rollers) or (1, 2, 3 pcs) x LP-YZII15 (3 rollers)	13	0.7 - 38	5.6-6.4
		14	2.5 - 150
		19	4.2 - 250
		16	7.7 - 460
		25	16 - 960
		17	26 - 1600
		18	36 - 2200
	(1, 2, 3 pcs) x LP-YZ2515x (3 rollers)	15	16 - 960
	(1, 2, 3 pcs) x LP-YZ2515x (3 rollers)	24	26 - 1600
	(1, 2 pcs) x LP-YZII25 (3 rollers)	15	19 - 960	5.6-6.0
		24	26- 1600
		35	36 - 2200
		36	50 - 3000
	LP-DG15-24 (4 rollers)	16	8.2 - 490	6.0
		25	19.2 - 1150
		17	30 - 1800
	(1, 2 stk) x DMD15-13-B (3 rollers)	13	1.3 - 60	5.6-6.0
		14	5.0 - 300
		19	10.3 - 620
		16	16 - 960
		25	35 - 2070
	LP-KZ25 (3 rollers)	15	30 - 1800	6.0
		24	58 - 3500
		35	83 - 5000
		36	100 - 6000

Note: If you choose a LP-YZ1515x with 6 rollers the flow rate will be 2/3 of the flow rate LP-YZ1515x with 3 rollers.

Pump head material

PESU (Polysulphone material) is white, has good rigidity and high precision. It is usually used in research laboratories and supporting analytical devices. The PESU material can resist temperatures from -100℃ to 150℃ and can resist corrosion from most inorganic acid, base and salt.
PPS (Poyphenylene sulfide material) is black and can resist organic solvent corrosion. It is suitable for industrial use and bad working conditions. It has high rigidity and precision. The PPS material can resist temperatures of 200 ℃.

VIDEOS

Calibrating the LP-WT600-1F Dispensing Pump

Weight	5.2 kg
CE marking	Yes
IP-Rating	IP31
Speed	10-600 rpm
Flow rate	0.7-6000 ml/min
Power supply	AC 220V±20%/140W
Operating Temperature	0-40°C
Relative humidity	< 80%
Size (Length)	285 mm
Size (Height)	180 mm
Size (Width)	207 mm
