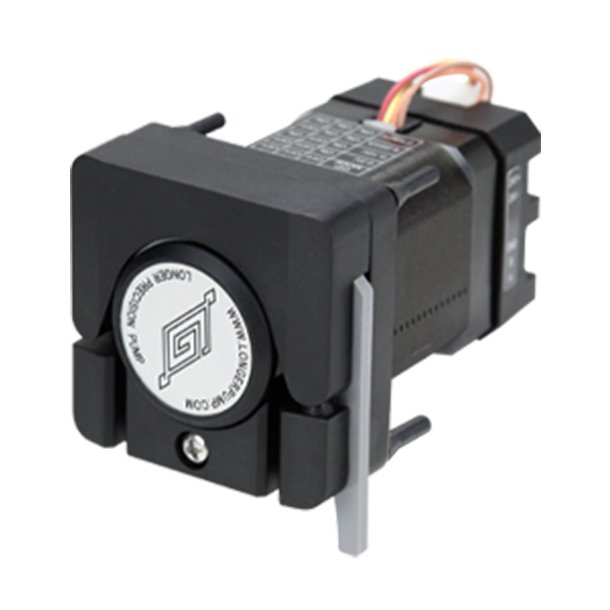

T100-SE01 / WX10-14-H OEM Peristaltic Pump with Integrated Driver

T100-SE01 / WX10-14-H OEM Peristaltic Pump with Integrated Driver

EUR 177.30

(excl. VAT)

The T100-SE01&WX10-14-H is a compact OEM peristaltic pump with integrated NEMA 17 stepper motor and electronic control. It is ideal for precise dosing in space-constrained devices such as medical and laboratory equipment. The pump ensures smooth flow with low pulsation and offers flexible control options.

Key features:

  • WX10-14 pump head with 4 rollers for low pulsation
  • Adjustable speed via DIP switch or external control (4–20 mA, 0–10 V, 0–10 kHz)
  • Compatible tubing: ID 0.89–2.79 mm, wall thickness 0.8–1.0 mm
  • Max flow: 40 mL/min, max speed: 100 rpm
  • Power supply: 24 V DC / 8 W, panel mounting
  • Can be ordered even when out of stock – delivery time approx. 2–3 weeks
Read more
Model/Product no.: T100-SE01/WX10-14-H
Weight: 0.47 kg
Stock status: approx. 3 weeks delivery
pcs.

T100-SE01 & WX10-14-H OEM peristaltic pump with integrated driver

The T100-SE01 OEM pump with WX10-14-H pump head is a compact OEM peristaltic pump with integrated stepper motor and driver, suitable for applications with limited space and the need for precise fluid control.

The pump is typically used in medical and analytical equipment where user-friendly control and smooth fluid handling are required.

Features

  • Integrated stepper motor (NEMA 17) with electronic driver
  • Compact design for panel mounting
  • WX10-14 peristaltic pump head with 4 rollers for low pulsation
  • Speed adjustable via DIP-switch or external control signal
  • Direction and start/stop control via dry contact
  • Supports analog and pulse input signals

Control signals

  • Start/stop and direction control via external contact
  • External speed control via:
    • 4–20 mA
    • 0–5 V
    • 0–10 V
    • 0–10 kHz
  • Speed setting via DIP-switch (0–100 rpm in 5 rpm steps)

Technical specifications

  • Max speed: 100 rpm
  • Speed resolution: 0.1 rpm
  • Max flow rate: 40 mL/min (depending on tubing and medium)
  • Compatible 3-stop tubing for WX10-14 pump head: ID 0.89–2.79 mm, wall thickness 0.8–1.0 mm, with stops placed 72 mm apart.
  • Power supply: DC 24V / 8W
  • Dimensions (L × W × H): 94 × 59 × 67.5 mm
  • Mounting method: Panel mounting
  • Operating temperature: 0–40 °C
  • Relative humidity: < 80 %
  • Weight: 0.47 kg
