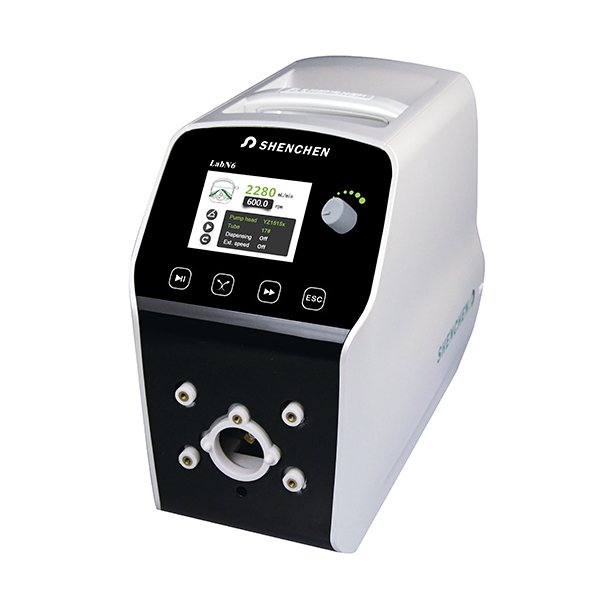

The LabN6 is a peristaltic pump with integrated timer function and 3.2" LCD display. The pump allows both flow rate and motor speed to be set and read directly on the display. It is operated using a rotary knob and mechanical keypad. The LabN6 can be used with AMC series pump heads as well as YZ1515x and YZ2515x pump heads, and supports both single-channel and multi-channel configurations.
The pump has a speed range of 0.1-600 rpm and a flow range from 0.0002 to 2280 ml/min, depending on the pump head and tubing used. The timer function can be set from 0.1 seconds to 9999 hours and can be used for simple dispensing tasks. The LabN6 also supports external control via analog signals and communication via RS232 and RS485 with MODBUS RTU protocol.
| Tubing no. (#) | Tubing dimensions (inner diameter × wall thickness) |
Flow per revolution (ml/rev) |
Motor speed (rpm) |
Flow rate (ml/min) |
|---|---|---|---|---|
| 13# | 0.8 × 1.6 mm | 0.07 | 0.1-600 | 0.007-42 |
| 14# | 1.6 × 1.6 mm | 0.27 | 0.1-600 | 0.027-162 |
| 19# | 2.4 × 1.6 mm | 0.55 | 0.1-600 | 0.055-330 |
| 16# | 3.1 × 1.6 mm | 0.82 | 0.1-600 | 0.082-492 |
| 25# | 4.8 × 1.6 mm | 1.70 | 0.1-600 | 0.17-1020 |
| 17# | 6.4 × 1.6 mm | 2.90 | 0.1-600 | 0.29-1740 |
| 18# | 7.9 × 1.6 mm | 3.80 | 0.1-600 | 0.38-2280 |
| Tubing no. (#) | Tubing dimensions (inner diameter × wall thickness) | Flow per revolution (ml/rev) | Motor speed (rpm) | Flow rate (ml/min) |
|---|---|---|---|---|
| 15# | 4.8 × 2.4 mm | 1.70 | 0.1-600 | 0.17-1020 |
| 24# | 6.4 × 2.4 mm | 2.90 | 0.1-600 | 0.29-1740 |
| Weight | 4.40 kg |
| Material | ABS plastic housing |
| CE marking | Yes |
| IP-Rating | IP31 |
| Speed | 0.1 - 600 rpm |
| Flow rate | 0,0053 ml/min - 3100 ml/min/channel |
| Power supply | AC220V +10%, 50Hz/60Hz (standard) |
| Operating Temperature | 0-40°C |
| Relative humidity | < 80% |
| Size (Length) | 261.4 mm |
| Size (Height) | 237 mm |
| Size (Width) | 261.4 mm |
| Caption | Representative image only |
| Title | Type | Size | Download |
|---|---|---|---|
| LabN6--Basic-Peristaltic-Pump-2023-Drifton.pdf | 696.92KB | Download | |
| YZ1515-YZ2515_pump-head-2020.pdf | 1.33MB | Download |
