LabV6 Flow Rate Tube Pump - STOCK CLEARANCE
  • LabV6 Flow Rate Tube Pump - STOCK CLEARANCE
  • LabV6 Flow Rate Tube Pump - STOCK CLEARANCE
  • LabV6 Flow Rate Tube Pump - STOCK CLEARANCE
  • LabV6 Flow Rate Tube Pump - STOCK CLEARANCE
  • LabV6 Flow Rate Tube Pump - STOCK CLEARANCE
  • LabV6 Flow Rate Tube Pump - STOCK CLEARANCE
  • LabV6 Flow Rate Tube Pump - STOCK CLEARANCE

Representative image only

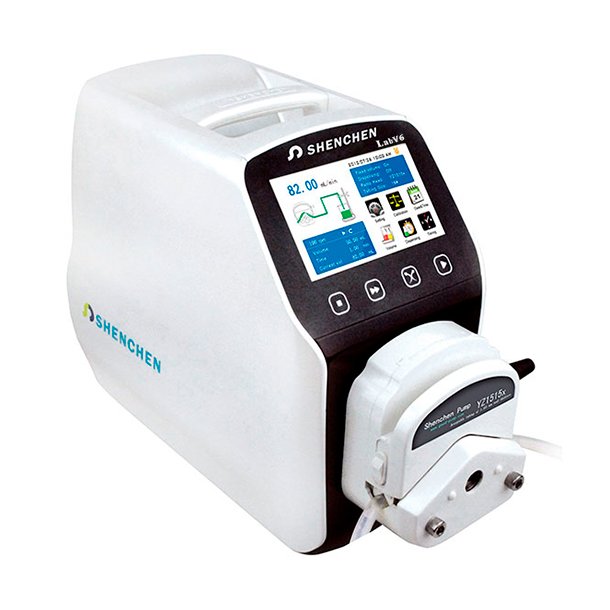

LabV6 Flow Rate Tube Pump - STOCK CLEARANCE

Price from EUR 846.20 EUR 1,208.90

(excl. VAT)

The LabV6 is an intelligent peristaltic flow rate pump with several operating modes, ABS plastic housing and streamlined design. It has an industrial grade 4.3 inch true color LCD display and touch screen control.

Speed range is 0.1-600 rpm and flow rate range is 0.007-22800 ml/min/channel.

The touch screen provides easy operation and dynamic display of the current state. You get the complete overview of your dispensing task, e.g. dispensing data, setting parameters and system configuration on the same screen.

Operating modes

  • Flow rate or speed setting (ml/min or rpm)
  • Fixed volume metering function
  • Fixed time and volume function
  • Timed start and stop function

This meets different transferring and dispensing requirements. It is the ideal choice for laboratories and industrial production.

If your desired configuration is not available, you can choose the pump without pump head and choose the pump head separately.

Read more
LabV6 Flow Rate Tube Pump - STOCK CLEARANCE
Items

Price
Note
Quantity
  • without pump head, coupling for flat shaft

    Type: without pump head, coupling for flat shaft

    Model/Product no.: LABV6-C

    EUR 846.20 EUR 1,208.90

    (excl. VAT)

    1 pcs. in stock

    Weight: 4.4 kg

  • incl. YZ1515x PSF pump head with 1 channel and 3 rollers

    Type: incl. YZ1515x PSF pump head with 1 channel and 3 rollers

    Model/Product no.: LABV6/YZ1515X(PSF)-C

    EUR 961.40 EUR 1,373.40

    (excl. VAT)

    1 pcs. in stock

    Weight: 4.7 kg

High Flow Rate Peristaltic Pump with Multible Operating Modes and Touch Screen Control

The LabV6 is an intelligent peristaltic flow rate pump with several operating modes, ABS plastic housing and streamlined design.
It has an industrial grade 4.3 inch true color LCD display and touch screen control.

Speed range is 0.1-600 rpm and flow rate range is 0.007-2280 ml/min/channel.

The touch screen provides easy operation and dynamic display of the current state. You get the complete overview of your dispensing task, e.g. dispensing data, setting parameters and system configuration on the same screen.

Operating modes

  • Speed and flow rate mode (ml/min or rpm)
  • Fixed volume metering function: By activating this function, the peristaltic pump will measure the liquid volume automatically and it will stop automatically after the volume reaches the set value. During this process, the flow rate can be changed. It is suitable for dispensing liquids in laboratories and chemical reaction processes.
  • Fixed time and volume function: By activating this function, the peristaltic pump will transfer a preset volume within a preset time. It is suitable for liquid dispensing in laboratories and industrial production.
  • Timed start and stop function: Set the pumps start and stop times freely to achieve automated control.

This meets different transferring and dispensing requirements. It is the ideal choice for laboratories and industrial production.

Function and Features

  • Imported 4.3 inch - industrial grade - true color LCD screen with clear picture quality. Dynamic display of real-time trasferring status. The flow rate, motor speed, setting parameters and system configuration display in the same screen.
  • The step motor drive provides precise control.
  • Various external control functions; RS485/RS232 and Shenchen-V-EMB-PGM programmable external control function.
  • Intelligent calibration function, which can calibrate the flow rate and dispensing volume to ensure the flow accuracy. Suitable for high accuracy liquid transferring.
  • Unique accurate angle control technology - achieve high accuracy dispensing and dosing.
  • On-line micro adjusting function, it can adjust the flow rate during production progress to avoid filling errors caused by tubing fatigue and decrease in elasticity.
  • Fast filling function that can wash and also fill fluid into the tubing.
  • Power down memory function that stores the running parameters in time - safe and reliable.
  • Automatic temperature control system that reduces the noise of the fan effectively.
  • Strong anti-jamming feature with wide voltage design, that is suitable for complex power supply environments.

Technical Specification

  • Flow rate range: 0.007-2280 ml/min/channel
  • Speed range: 0.1-600 rpm
  • Speed resolution: 0.01 rpm
  • Flow rate resolution: 0.01 μl
  • Flow rate accuracy: ±0.5 %
  • Back suction angle: 0-360°
  • Output pressure:
    0.1 Mpa (0.86-1.0 mm tubing wall thickness)
    0.1-0.27 Mpa (1.6-2.4 mm tubing wall thickness)
  • Motor type: Step motor
  • Circuit system: Shenchen-LabV-CIR
  • Control system: Shenchen-LabV-EMB
  • Display: 4.3 inch industrial grade true color LCD screen
  • Control method: Touch screen and membrane keypad
  • External speed control signal : 0-5V, 0-10V, 4-20mA
  • Start/stop, direction signal: Passive switch signal, such as foot pedal. Active switch signal: 5V, 12V and 24V
  • Communication interface: RS232/RS485 support MODBUS protocol (RTU mode)
  • Output interface: Output motor work status (open-collector output)
  • Motors:
    • LabV6: 57-76 stepper motor
  • Power consumption: <50 W

Operating Manual

  • Supplied with English operating manual

Parameters

Pump Pump head Tubing size (#) ID×Wall
thickness (mm)		 Flow rate (ml/min/channel) at 0.1-600 rpm
(measured with water)
LabV6 YZ1515x
with 1 channel and 3 rollers
(1, 2, 3 or 4 pcs.)		 13 0.8×1.6 0.007 - 42
14 1.6×1.6 0.027 - 162
19 2.4×1.6 0.055 - 330
16 3.1×1.6 0.082 - 492
25 4.8×1.6 0.17 - 1,020
17 6.4×1.6 0.29 - 1,740
18 7.9×1.6 0.38 - 2,280
YZ2515x
with 1 channel and 3 rollers
(1 or 2 pcs.)		 15 4.8×2.4 0.17 - 1,020
24 6.4×2.4 0.29-1740

Note: If you choose a YZ1515x pump head with 6 rollers the flow rate will be about 2/3 of the 3 roller version

Pump Head Materials (YZ1515x and YZ2515x)

  • PSF (Polysulphone material) is white, has good rigidity and high precision. It is usually used in research laboratories and supporting analytical devices. The PSF material can resist temperatures from -100 ℃ to 150 ℃ and can resist corrosion from most inorganic acid, base and salt.
  • PPS (Poyphenylene sulfide material) is black and can resist organic solvent corrosion. It is suitable for industrial use and bad working conditions. It has high rigidity and precision. The PPS material can resist temperatures of 200 ℃

Videos

Fixed Time and Volume function on the LabV6 peristaltic pump



Fixed volume function on the LabV6 Peristaltic Pump

Timer function for Start/Stop on the LabV6 peristaltic pump

Countinuous Liquid Transfer with the LabV6 Peristaltic Flow Rate Pump

Calibrating the LabV6 Peristaltic Pump

LabV6 Peristaltic Pump working with a balance



Weight 4.4 kg
Colour White, Black
Material ABS
CE marking Yes
IP-Rating IP31
Speed 0.1-600 rpm
Power supply AC220V +/- 10%, 50Hz/60Hz
Operating Temperature 0-40 ℃
Relative humidity < 80%
Size (Length) 261.4 mm
Size (Height) 236.9 mm
Size (Width) 157.3 mm
Caption Representative image only

Category: Accessories

Items
Price
Note
Quantity
Title Type Size Download
LabV-series_V-series_peristaltic-pump-2020.pdf PDF 1.80MB Download
Lab-V-Series-MODBUS-Protocol.pdf PDF 128.73KB Download
LabV-Series-Manual_2020.pdf PDF 2.82MB Download
LabV-Series-Peristaltic-Pump---English-Manual-2022.pdf PDF 1.30MB Download
