(excl. VAT)Syringe pump for 2 syringes and with infusion and withdrawal mode

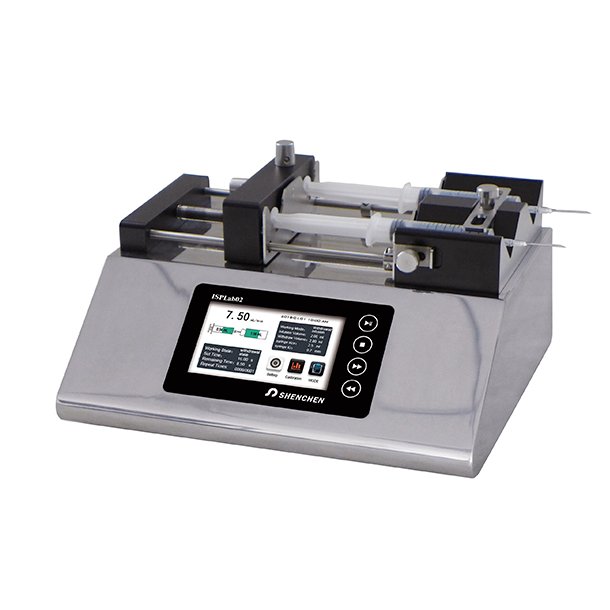

The ISPLab02 syringe pump is for 2 channels/syringes with infusion and withdrawal mode.
The syringe pump ISPLab02 is suitable for high precision transfer with microflow rates (not for medical use).
The pump has stainless steel casing and a large, easy-to-operate color LCD monitor (touch screen). Different types and sizes of plastic syringes can be fixed to the pump. Please contact us if you whish to use glass syringes in the pump.
The ISPLab02 syringe pump has 4 working modes
- Infusion
- Withdrawal
- Infusion/withdrawal
- Withdrawal/infusion
The parameters for each working mode can be set separately. And each working mode can be changed to continuous mode by setting the repeat parameters.
Specifications
- No. of channels/syringes: 2 pcs
- Flow rate: 2 channels: 0.002 ul/min - 165.871 ml/min
- Suitable syringe material: Plastic or glass
- Syringe size: 0.5 µl - 150 ml, plastic syringes, 1-25 ml glass syringes
- Syringe selection: Predefined syringe sizes and customized diameter
- Linear speed range: 1µm/min-132mm/min (Flow rate=Linear speed x syringe inner cut area)
- Min. linear rate: 1μm/min
- Linear force: 8-20 kgf, online adjust
- Max. stroke: 140 mm
- Infusion volume per microstep: 0.078 μm
- Accuracy: Error ≤ ± 0.3% (stroke >30% maximum stroke)
- Back distance: 0.01-10mm
- Memory function: Common modes: Can save 60 common modes
- Display: Industrial grade 4.3" LCD color display
- Control method: Touch screen and mechanical keypad
- Power-off memory: Display the previous data parameter when the power is back on
- Output OC gate signal output, used to indicate running status and direction
- External control:
- Start/stop signal, withdrawal and infusion signal, active switch signal: 5-24V.
- As option: start/stop signal, passive switch signal such as a foot pedal switch
- Communication interface: RS232/RS485, Modus protocol (RTU mode)
- Power supply: AC100-240V/65W
- Operating temperature: 0-40°C
- Relative humidity: <80%
- IP rate: IP31
- Housing material: Stainless steel AISI 304
- Size WxDxH: 282x242x157 mm
Operating Manual
- Supplied with English operating manual
Parameters
| Syringe | Inside diameter (mm) | Flow rate (μl/min-ml/min) |
| ISPLab02 | ||
| 1 ml | 4.70 | 0.087~2.290 |
| 2.5 ml | 9.70 | 0.370~9.755 |
| 5 ml | 12.48 | 0.612~16.147 |
| 10 ml | 15.89 | 0.992~26.177 |
| 20 ml | 20.00 | 1.571~41.469 |
| 30 ml | 22.50 | 1.988~52.484 |
| 50 ml | 28.90 | 3.280~86.588 |
| 100 ml | 32.00 | 0.8042~106.154 |
| 150 ml | 40.00 | 1.2566~165.871 |
Videos
| Material | Body: stainless steel |
| CE marking | Yes |
| IP-Rating | IP31 |
| Flow rate | 0.002 ul/min - 165 ml/min for 2 channels |
| Power supply | AC 100-240V / 65W |
| Operating Temperature | 0-40 °C |
| Relative humidity | <80% |
| Size (Width) |
