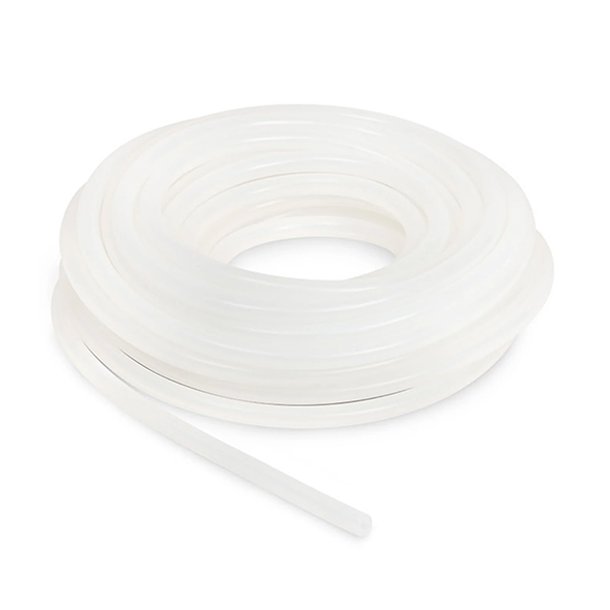

Innovasil® P 65 Biopharmaceutical Platinum-Cured Silicone Pump Tubing

Price from EUR 159.20

(excl. VAT)

Innovasil® P 65 is a biopharmaceutical-grade, platinum-cured silicone tubing developed for single-use systems in biopharmaceutical applications and for use with peristaltic pumps where high purity, stable pumping performance, and long service life are important parameters. The series has a longer theoretical service life than Innovasil P 50.

Developed for single-use systems in biopharma
Suitable for use with peristaltic pumps where good pumping performance is required
Smooth inner surface that minimizes protein binding
Operating temperature range: -40 °C to +200 °C
Theoretical service life: approx. 250 hours at 0 bar and approx. 130 hours at 0.7 bar
Longer theoretical service life than Innovasil P 50
Complies with FDA, ISO 10993, USP, RoHS and REACH

The product can be ordered even if it is not in stock, with an expected delivery time of approx. 2–3 weeks.

Innovasil® P 65 Biopharmaceutical Platinum-Cured Silicone Pump Tubing

Items

Price

Note

Quantity

Dimensions: 15#: WT 2.38mm, ID 4.76mm, OD 9.53mm, 15 m

Model/Product no.: SP59-202-0476-0953

EUR 159.20

(excl. VAT)

in stock

Weight: 1.2 kg
Dimensions: 36#: WT 2.38mm, ID 9.53mm, OD 14.29mm, 15 m

Model/Product no.: SP59-202-0953-1429

EUR 212.70

(excl. VAT)

approx. 3 weeks delivery

Weight: 1.8 kg

Innovasil® P 65 – Platinum-cured silicone tubing for peristaltic pumps

Innovasil® P 65 is a biopharmaceutical-grade, platinum-cured silicone tubing with Shore A 65 hardness. It is specially developed for single-use systems for biopharmaceutical applications. The tubing is produced using a platinum vulcanization system and high-purity silica raw materials with special post-processing technology. It is manufactured and packaged in NEBB-certified ISO Class 7 clean production workshops, providing high purity and extremely low leachables levels. The smooth inner surface minimizes protein binding and supports high purity of the finished product. The entire batch of raw materials and the production process are traceable, and an authoritative third-party testing organization in the United States has a complete research report on biocompatibility and dissolved substances.

Key features

Platinum-cured silicone tubing
Biopharmaceutical grade
Suitable for use with peristaltic pumps
Colorless and transparent
Shore A hardness 65
Smooth inner surface with low particle release
Chemical resistance – resistant to dye, detergent, vinegar, etc.
Cleanroom production
Sterilizable

Technical specifications

Material: Platinum-cured silicone
Color: Transparent
Hardness: 65 Shore A
Density: 1.15 g/cm³
Tensile strength: 9.7 MPa
Elongation at break: 1000 %
Tear strength: 45 kN/m
Permanent compression set: 17 % (23 °C, 22 hours)
Operating temperature range: -40 °C to +200 °C

Sterilization

Steam sterilization: 121 °C for 30 minutes (single pass)
ETO (ethylene oxide), single-shot
Gamma irradiation: 25 kGy, single cycle

Compliance / certifications

FDA
ISO 10993
USP
RoHS
REACH

Theoretical service life

At 0 bar: 250 hours
At 0.7 bar: 130 hours

Applications

Single-use systems
Biopharmaceutical processes
Applications requiring high purity and good pumping performance

Notes / limitations

Avoid high pressure.

Documentation

Innovasil® P 65 Peristaltic Pump Silicone Tubing – datasheet

Note: A chemical resistance overview can be found in the Innovapure catalogue “Chemical Resistance Table”.
