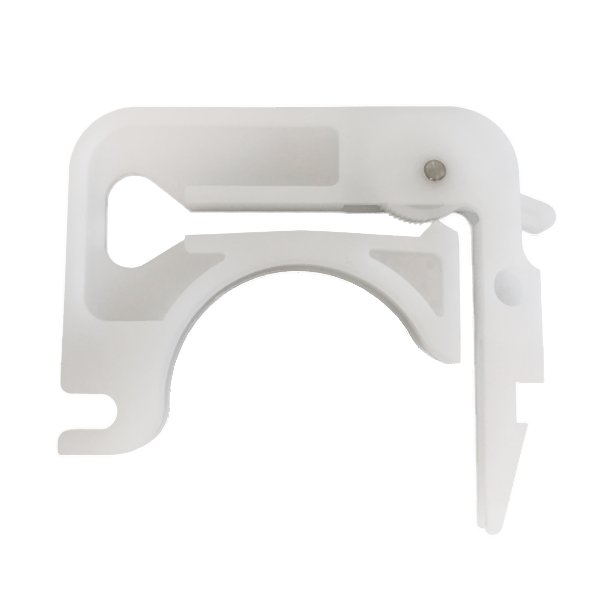

This ratchet cassette is a spare part for the DG pump head from LONGER. It is made from POM (polyoxymethylene), ensuring high wear resistance and chemical durability.
The ratchet mechanism allows for quick and secure tubing installation without tools. The cassette is designed for TAAT tubing with 3 stops, where the stops are spaced 72 mm apart. It supports tubing with an inner diameter of up to 3.17 mm and a wall thickness of 0.8 to 1 mm.
Pump heads designed for small flow rates and multi-channel fluid transfer. For TAAT tubing with stoppers.
Rollers: 6 or 10
Channels: 1-12
Tubing WT: 0.8-1.00 mm
Flow rate: < 48 ml/min
Price from EUR 220.70
(excl. VAT)
Inexpensive all-round tubing for general laboratory applications.
Tubing life: 35 hours
Standards: None
EUR 177.60
(excl. VAT)
Basic low flow rate peristaltic pump.
Speed: 0,1-100 rpm.
Channels: 1-2
Flow rate: 0.0002 ml/min - 380 ml/min/channel.
External control: Yes
Price from EUR 441.50
(excl. VAT)
Multi-channel tube pump with low flow rate.
Pump heads: 1-4
Channels: 1-24
Speed: 0.1-100 rpm
Flow rate: 0,002-500 ml/min/channel
External control: start/stop, direction, speed
IP31
Price from EUR 1,156.20
(excl. VAT)
