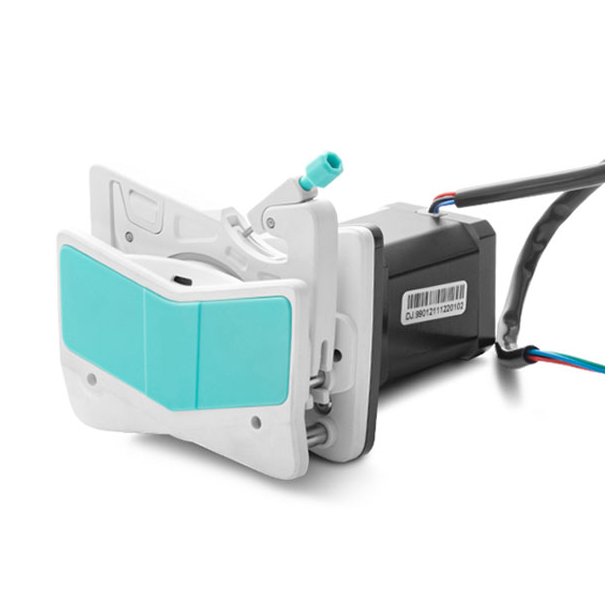

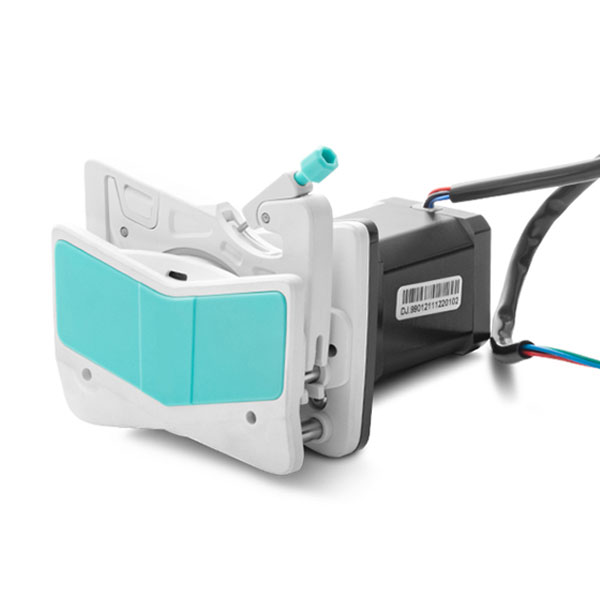

OEM-AMCB001 Peristaltic Pump

EUR 325.80

(excl. VAT)

OEM-AMCB001 is a compact OEM peristaltic pump from the AMC series designed for precise dosing in built-in applications.

The pump is supplied as an integrated unit with pump head and stepper motor.

OEM peristaltic pump with AMC series pump head
Configuration with 6 or 10 rollers
Speed range 0.1-150 rpm
Flow range 0.0002-65.17 ml/min
Rollers made of 304 stainless steel
Maximum hose pressure 0.1 MPa

The product can be ordered even if it is not in stock, with an expected delivery time of approximately 2–3 weeks.

OEM-AMCB001 Peristaltic Pump

Items

Price

Note

Quantity

Type: incl. AMC1(10) pump head with 1 channel and 10 rollers

Model/Product no.: OEM-AMCB001/AMC1(10)

EUR 325.80

(excl. VAT)

in stock.

Weight: 0.926 kg
Type: incl. AMC1(6) pump head with 1 channel and 6 rollers

Model/Product no.: OEM-AMCB001/AMC1(6)

EUR 325.80

(excl. VAT)

Ships in 2 weeks

Weight: 0.826 kg

OEM-AMCB001 OEM Peristaltic Pump with AMC Pump Head

OEM-AMCB001 is a compact OEM peristaltic pump from the AMC series, supplied as an integrated unit with pump head and stepper motor.

Main features

OEM peristaltic pump with AMC series pump head
Configuration with 6 or 10 rollers
Rollers made of 304 stainless steel
Speed range 0.1-150 rpm
Flow range 0.0002-65.17 ml/min
Maximum hose pressure 0.1 MPa (intermittent and continuous)

Technical specifications

Model: OEM-AMCB001
Speed range: 0.1–150 rpm
Flow range: 0.0002–65.17 ml/min
Motor type: 42 stepper motor
Number of motor phases: 2
Step angle: 1.8°
Motor phase voltage: 3.6 V
Motor phase current: 1.7 A
Roller material: 304 stainless steel
Number of rollers: 6 or 10
Operating environment: 0–40 °C, up to 80% RH
Max. hose pressure (intermittent): 0.1 MPa
Max. hose pressure (continuous): 0.1 MPa

Flow data

The flow rate depends on hose dimension, speed (0.1–150 rpm) and number of rollers (6 or 10).

Hose dimension (ID × OD, mm)	Flow with 10 rollers (ml/min)	Flow with 6 rollers (ml/min)
1 × 1	0.0050 – 7.55	0.0062 – 9.36
2 × 1	0.0183 – 27.52	0.0220 – 33.06
2.4 × 0.8	0.0254 – 38.13	0.0319 – 47.81
3 × 1	0.0323 – 48.38	0.0434 – 65.17
0.13 × 0.86	0.0002 – 0.29	0.0002 – 0.31
0.19 × 0.86	0.0003 – 0.44	0.0003 – 0.46
0.25 × 0.86	0.0005 – 0.76	0.0005 – 0.80
0.51 × 0.86	0.0013 – 2.00	0.0014 – 2.05
0.89 × 0.86	0.0030 – 4.47	0.0031 – 4.65
1.14 × 0.86	0.0061 – 9.16	0.0065 – 9.74
1.42 × 0.86	0.0125 – 18.75	0.0142 – 21.28
2.06 × 0.86	0.0197 – 29.60	0.0234 – 35.17
2.79 × 0.86	0.0286 – 42.86	0.0372 – 55.77

Handling / installation

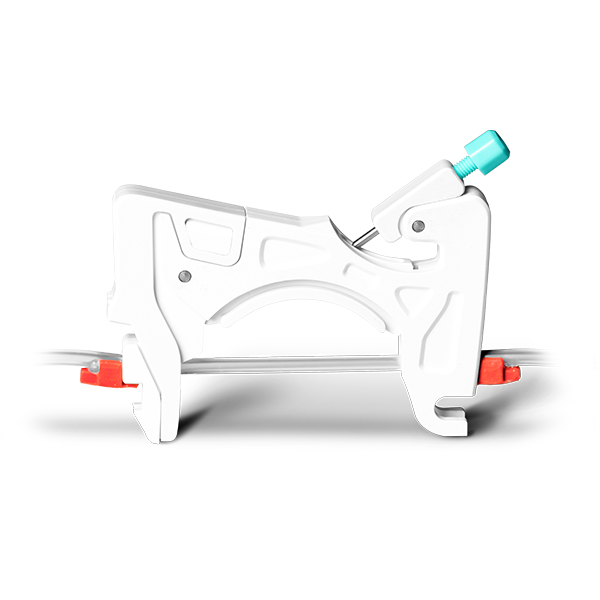

The datasheet shows a step-by-step procedure for hose installation, including opening the cartridge, positioning the hose, centering the cartridge and adjusting the pressure via the adjustment knob depending on hose size.

Compliance / certifications

CE marked
Complies with 2014/35/EU (Low Voltage Directive)
Complies with 2014/30/EU (EMC Directive)
Tested according to EN 61010-1 and EN IEC 61326-1
