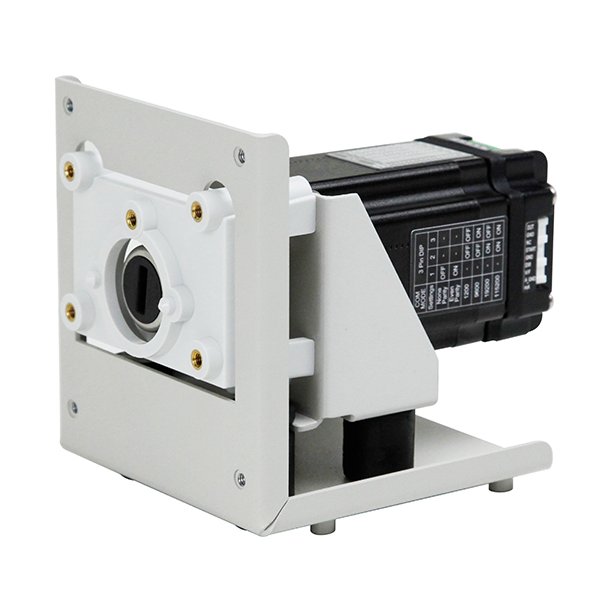

T600-SE02-01 OEM Peristaltic Pump with Integrated Driver

EUR 199.70

(excl. VAT)

The T600-SE02-01 is an OEM peristaltic pump from the SE02 series with an integrated driver, designed for integration and panel mounting. The pump combines variable speed with flexible control and signal options for OEM applications.

Variable speed from 0–600 rpm with 1 rpm resolution
Integrated driver with NEMA 23 stepper motor
External speed control via 4-20 mA, 0-5 V, 0-10 V and 0-10 kHz
Start/stop controlled via contact signal (dry contact)
Rotation direction controlled via contact signal (dry contact)
Compatible with multiple peristaltic pump heads, enabling a wide flow range depending on configuration

If the pump is not in stock, delivery is typically possible within approximately 2–3 weeks.

Model/Product no.: T600-SE02-01

Weight: 1.61 kg

Stock status: approx. 3 weeks delivery

pcs.

T600-SE02-01 – OEM peristaltic pump with variable speed and integrated driver

The T600-SE02-01 is an OEM peristaltic pump from the SE02 series with an integrated driver and NEMA 23 stepper motor. The pump is designed for integration and panel mounting and offers flexible control via digital signals, analog signals, and pulse signals. It is compatible with a wide range of peristaltic pump heads, enabling various flow ranges depending on configuration.

Key features

Peristaltic pump with variable speed
Integrated driver and NEMA 23 stepper motor
Supports digital, analog, and pulse-based speed control
Compatible with multiple OEM pump heads
Wide flow range depending on pump head and tubing
Suitable as an OEM hose pump for integration and panel mounting

Technical specifications

Model: T600-SE02-01
Speed range: 0–600 rpm
Speed resolution: 1 rpm
Power supply: DC 24 V
Power consumption: 55 W
Output: DC5V / 100mA
External speed control:
- 4-20 mA
- 0-5 V
- 0-10 V
- 0-10 kHz
Dimensions (L × W × H): 143 × 102 × 118 mm
Weight (without pump head): 1.61 kg
Operating conditions:
- Temperature: 0–40 °C
- Relative humidity: < 80 %

Control and operation

Rotation direction: Controlled via contact signal (dry contact). Trigger mode can be configured via communication commands to either level or pulse trigger. Factory default: pulse trigger.
Start/stop: Controlled via contact signal (dry contact). Factory default: level trigger (contact open = start, contact closed = stop).
DIP switch speed setting:
- Speed range: 0–600 rpm
- Each DIP position corresponds to a 20 rpm step

Mounting

Panel mounting
Base mounting

Flow data for pump heads on the T600-SE02-01 Peristaltic Pump

Maximum flow rates depend on the selected pump head and tubing:

Pump head	Tubing types (according to datasheet)	Max. flow (ml/min)
YZ1515X, YZII15	13#, 14#, 19#, 16#, 25#, 17#, 18#	2200
YZ2515X	15#, 24#	1600
YZII25	15#, 24#, 35#, 36#	3000
FG15-13	13#, 14#, 19#, 16#, 25#, 17#, 18#	2400
FG25-13	15#, 24#	2200
DMD15-13-B	2×13#, 2×14#, 2×19#, 2×16#, 2×25#	2070
BZ15-13-A	14#	150
BZ15-13-B	16#	460
BZ15-14-C	25#	960
BZ15-14-D	17#	1600
BZ25-13-B	24#	1600
DG15-24	16#, 25#, 17#	1800 per channel
BPH01	13#, 14#, 19#, 16#, 25#	530

Compliance / certifications

Applications

OEM peristaltic pump for integration
Panel-mounted dosing and transfer applications
Applications requiring variable speed and external control

Documentation

Supplied with documented specifications from the manufacturer
Additional technical documentation available on request
