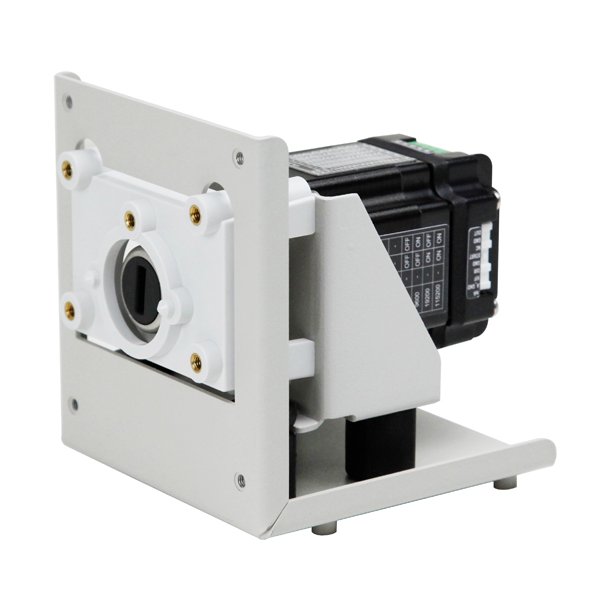

T100-SC02 OEM Peristaltic Pump with Integrated Driver

EUR 194.60

(excl. VAT)

The T100-SC02 is a compact OEM peristaltic pump with an integrated driver, designed for accurate and stable liquid transfer. It is ideal for integration into dosing systems and analytical or process equipment where reliability and precision are essential.

Compact design with integrated driver and NEMA 23 stepper motor
RS485 communication supporting Modbus RTU and Longer Pump OEM protocol
Compatible with multiple pump heads (YZ, FG, DG, DMD, BZ, and BPH series)
Precise speed control from 0–100 rpm
Panel or baseplate mounting for flexible installation
Ideal for automated OEM systems and laboratory automation

This product can be ordered even when out of stock, with an estimated delivery time of approximately 2–3 weeks.

Model/Product no.: T100-SC02

Weight: 0.47 kg

Stock status: in stock / 1pcs.

pcs.

OEM Peristaltic Pump T100-SC02 with Integrated Driver

The T100-SC02 is a compact OEM peristaltic pump featuring an integrated driver and a NEMA 23 stepper motor, designed for precise and stable liquid transfer in applications where space, reliability, and RS485 communication are essential.

The pump is suitable for panel mounting and OEM integration in dosing and liquid transfer systems.

The T100-SC02 supports Modbus RTU and the Longer Pump OEM protocol and can be used with a wide range of pump heads for flexible flow adjustment.

Main Features

Compact structure with integrated driver and NEMA 23 stepper motor
Communication control via RS485 (Modbus RTU and Longer Pump OEM protocol)
Compatible with pump heads in the YZ, FG, DG, DMD, BZ, and BPH series
Configurable startup mode (pump status can be defined at startup)
Panel or baseplate mounting
Easy integration into OEM equipment and systems requiring precise liquid transfer

Technical Specifications

Model: T100-SC02-01
Pump speed: 0–100 rpm
Speed resolution: 0.01 rpm
Power: DC24V / 15W
Output: DC5V 100mA
Communication: RS485 interface
Communication parameters: Baud rate 1200 / 9600 / 19200 / 115200 bps, Parity None/Even, Address 1–32, Stop bit 1
Control functions: RS485 interface supporting both Modbus RTU and Longer Pump OEM protocol. Pump speed, start/stop, direction, and prime function (full speed) can be controlled via communication commands. Pump startup status can be configured.
Dimensions (L × W × H): 121 × 102 × 118 mm
Weight: 1.29 kg (without pump head)
Mounting method: Panel or baseplate mounting
Operating conditions: 0–40 °C, relative humidity < 80%

Flow Data

Flow capacity per pump head

YZ1515X / YZII15 → up to 380 ml/min
YZ2515X → up to 270 ml/min
YZII25 → up to 500 ml/min
FG15-13 → up to 430 ml/min
FG25-13 → up to 320 ml/min
DMD15-13-B → up to 375 ml/min
BZ15 series → up to 270 ml/min
DG15-24 → up to 300 ml/min (single channel)
DG15-28 → up to 75 ml/min (single channel)
DG series (6 rollers) → up to 48 ml/min
DG series (10 rollers) → up to 32 ml/min
BPH01 → up to 82 ml/min

Warranty and Documentation

The pump is supplied with a 1-year warranty and accompanying technical documentation, including datasheet, user manual, and dimensional drawings.

Videos

Instructional and presentation videos are available upon request.

Applications

The T100-SC02 is typically used as a built-in component in automated dosing and liquid transfer systems, analytical instruments, laboratory automation equipment, pharmaceutical processing equipment, water treatment systems, and food technology machinery, where precision, reliability, and compact design are essential.
