Peristaltic OEM Pump T100-SX Series
LONGERPeristaltic OEM pump with variable speed.
Choose between multible control modes and pump heads.
Motor: Stepper motor
Max. flow rate: 430 ml/min
Speed: 0-100 rpm
CE-certified
EUR 164.60

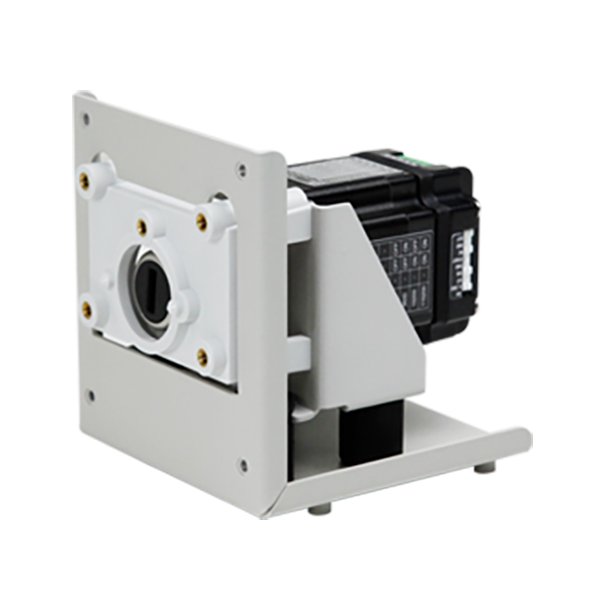

(excl. VAT)T100-SE02-01 OEM Peristaltic Pump with Integrated Driver
The T100-SE02-01 is an OEM peristaltic pump from the SE02 series, featuring an integrated driver and NEMA 23 stepper motor.
Its compact design supports digital control (start/stop and direction), analog speed control (4-20 mA, 0-5V, 0-10V), and frequency control via pulse signal (0-10 kHz).
Suitable for applications requiring precise liquid handling with high reliability and accurate control.
Key Features
- Speed range: 0-100 rpm
- Speed resolution: 0.1 rpm
- Supports digital, analog and frequency-based control
- Start/stop and direction via potential-free signal
- External speed control: 4-20 mA, 0-5 V, 0-10 V or 0-10 kHz
- DIP switch for max. speed configuration
- Panel or base mounting
- Compatible with various peristaltic pump heads
Technical Specifications
- Speed: 0–100 rpm
- Resolution: 0.1 rpm
- Direction control: potential-free signal (DIP-switch configurable)
- Start/stop: potential-free signal or pulse
- External speed control: 4-20 mA, 0-5 V, 0-10 V or 0-10 kHz
- Output: DC5V / 100 mA
- Power supply: DC24V / 15W
- Dimensions (L×W×H): 121 × 102 × 118 mm
- Weight (without pump head): 1.29 kg
- Operating temperature: 0–40 °C, relative humidity <80%
- Mounting: panel or base
Warranty and Documentation
- Supplied with manufacturer's specification
- Additional technical documentation available upon request
Flow Data
| Pump Head | Tubing sizes | Max. flow (ml/min) |
|---|---|---|
| YZ1515X, YZII15 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 380 |
| YZ2515X | 15#, 24# | 270 |
| YZII25 | 15#, 24#, 35#, 36# | 500 |
| FG15-13 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 430 |
| FG25-13 | 15#, 24# | 320 |
| DMD15-13-B DMD15-13-D |
2×13#, 2×14#, 2×19#, 2×16#, 2×25# | 375 |
| BZ15-13-A | 14# | 22 |
| BZ15-13-B | 16# | 80 |
| BZ15-13-C | 25# | 150 |
| BZ15-13-D | 17# | 270 |
| BZ25-13-B | 24# | 250 |
| DG15-24 | 16#, 25#, 17# | 300 (single channel) |
| DG15-28 | 13#, 14# ID ≤1.3 mm, WT 0.8-1 mm | 75 (single channel) |
| DG-(1, 2, 4, 6, 8) | ID ≤3,17 mm, WT 0.8-1 mm | 48 (single channel) |
| DG-(1,2, 4, 8, 10) | ID ≤3,17 mm, WT 0.8-1 mm | 32 (single channel) |
| BPH01 | 13#, 14#, 19#, 16#, 25# | 82 |
| Title | Type | Size | Download |
|---|---|---|---|
| SE02-Series-OEM-Peristltic-Pump-with-Variable-Speed-and-Integrated-Driver---DRIFTON.pdf | 1.21MB | Download | |
| SE02-Series-with-Integrated-Driver_-Manual.pdf | 734.44KB | Download |
T100-SE01/WX10 OEM Peristaltic Pump with Integrated Driver
LONGERCompact OEM pump for precise fluid dosing
NEMA 17 stepper motor with integrated driver
Mounting: panel mounting
Pump head: WX10-14-H
External control via: 4-20 mA, 0-5 V, 0-10 V, 0-10 kHz
Max speed: 100 rpm
Max flow: 40 mL/min
EUR 177.30
(excl. VAT)
T100-SE01 / JY15-12-C OEM Peristaltic Pump with Integrated Driver
LONGERT100-SE01/JY15-12-C
Compact OEM pump for precise fluid dosing
NEMA 17 stepper motor with integrated driver
Mounting: panel mounting
Pump head: JY15-12-C
External control via: 4–20 mA, 0–10 V, 0–10 kHz
Max speed: 100 rpm
Max flow: 170 mL/min
EUR 242.20
(excl. VAT)
Tubing assembly for JY15-12 pump head
LONGERTube sets for LONGER JY15-12 pump head.
Materials: PVDF, PharMed BPT
EUR 17.30
(excl. VAT)
