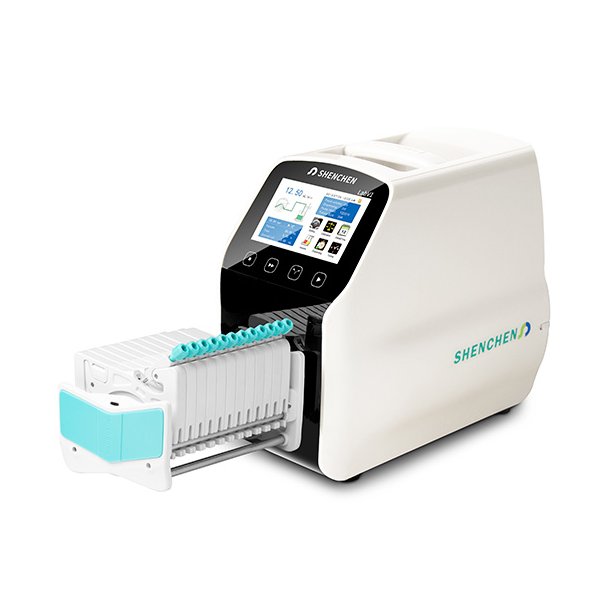

LabV1-III DB Peristaltic Pump

Price from EUR 996.60

(excl. VAT)

The LabV1-III DB is an upgraded version of the popular LabV1 pump with combined software from LabV and LabF.
It is designed for precise dosing and safe liquid transfer in both laboratory and industrial environments. The pump combines user-friendly operation with advanced features, making it an ideal choice for professional users.

Main features

Industrial 4.3” color LCD with touch screen and mechanical keypad
Operation in both rpm and flow display in mL/min
Operating modes: fixed volume, fixed time/volume and time-controlled start/stop
Flow range: 0.0002-775 mL/min, resolution: 0.01 mL/min
Speed range: 0.1-150 rpm, resolution: 0.01 rpm
Intelligent calibration function with online fine adjustment
Compatible with EasyPump I/II, EasyPump III/IV, EasyPump V/VI and AMC multichannel pump heads for single-channel, dual-channel and multichannel applications
RS232/RS485 interface with MODBUS RTU and external signal control
External speed control: 0-5 V, 0-10 V, 4-20 mA
Safety feature: the pump stops automatically if the EasyPump pump head is opened
3-year warranty

The pump can be ordered even if it is not in stock - the expected delivery time is approximately 2-3 weeks.

LabV1-III DB Peristaltic Pump

Items

Price

Note

Quantity

Type: -III incl. EasyPumpIII pump head with 1 channel and 4 rollers

Model/Product no.: LABV1IIIDB/EASYPIIIW

EUR 1,164.90

(excl. VAT)

Ships in 2 weeks

Weight: 4.7 kg
Type: -III incl. 2 EasyPumpIII pump heads with 1 channel and 4 rollers

Model/Product no.: LABV1IIIDB/2EASYPIIIW

EUR 1,373.00

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: -III incl. EasyPumpIV pump head with 1 channel and 4 rollers

Model/Product no.: LABV1IIIDB/EASYPIVW

EUR 1,164.90

(excl. VAT)

Ships in 2 weeks

Weight: 4.7 kg
Type: -III incl. 2 EasyPumpIV pump heads with 1 channel and 4 rollers

Model/Product no.: LABV1IIIDB/2EASYPIVW

EUR 1,373.00

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: -III incl. EasyPumpVI pump head with 2 channels and 4 rollers

Model/Product no.: LABV1IIIDB/EASYPVIW

EUR 1,164.90

(excl. VAT)

Ships in 2 weeks

Weight: 4.7 kg
Type: -III incl. 2 EasyPumpVI pump heads with 2 channels and 4 rollers

Model/Product no.: LABV1IIIDB/2EASYPVIW

EUR 1,556.90

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: -III incl. EasyPumpIII PPS pump head with 1 channel and 4 rollers

Model/Product no.: LABV1IIIDB/EASYPIIIB

EUR 1,164.90

(excl. VAT)

in stock.

Weight: 4.4 kg
Type: -III incl. 2 EasyPumpIII PPS pump heads with 1 channel and 4 rollers

Model/Product no.: LABV1IIIDB/2EASYPIIIB

EUR 1,373.00

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: -III incl. EasyPumpIV PPS pump head with 1 channel and 4 rollers

Model/Product no.: LABV1IIIDB/EASYPIVB

EUR 1,164.90

(excl. VAT)

Ships in 2 weeks

Weight: 4.7 kg
Type: with 2 pcs. EasyPumpIV PPS pump heads

Model/Product no.: LABV1IIIDB/2EASYPIVB

EUR 1,556.90

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: -III incl. EasyPumpVI PPS pump head with 2 channels and 4 rollers

Model/Product no.: LABV1IIIDB/EASYPVIB

EUR 1,164.90

(excl. VAT)

Ships in 2 weeks

Weight: 4.7 kg
Type: -III incl. 2 EasyPumpVI PPS pump heads with 2 channels and 4 rollers

Model/Product no.: LABV1IIIDB/2EASYPVIB

EUR 1,373.00

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: -III incl. EasyPumpVI-Y PARA low-pulsation pump head

Model/Product no.: LABV1III/EASYP-Y-W

EUR 1,164.90

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: incl. AMC1(6) pump head with 1 channel and 6 rollers

Model/Product no.: LABV1DB/AMC1(6)

EUR 996.60

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: incl. AMC2(6) pump head with 2 channels and 6 rollers

Model/Product no.: LABV1DB/AMC2(6)

EUR 1,020.30

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: incl. AMC4(6) pump head with 4 channels and 6 rollers

Model/Product no.: LABV1IIDB/AMC4(6)

EUR 1,067.60

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: -II incl. AMC6(6) pump head with 6 channels and 6 rollers

Model/Product no.: LABV1IIDB/AMC6(6)

EUR 1,118.60

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: -II incl. AMC8(6) pump head with 8 channels and 6 rollers

Model/Product no.: LABV1IIDB/AMC8(6)

EUR 1,165.90

(excl. VAT)

in stock.

Weight: 5 kg
Type: -II incl. AMC10(6) pump head with 10 channels and 6 rollers

Model/Product no.: LABV1IIDB/AMC10(6)

EUR 1,228.40

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: -III incl. AMC12(6) pump head with 12 channels and 6 rollers

Model/Product no.: LABV1IIIDB/AMC12(6)

EUR 1,446.20

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: incl. AMC1(10) pump head with 1 channel and 10 rollers

Model/Product no.: LABV1DB/AMC1(10)

EUR 1,007.40

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: incl. AMC2(10) pump head with 2 channels and 10 rollers

Model/Product no.: LABV1DB/AMC2(10)

EUR 1,041.50

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: incl. AMC4(10) pump head with 4 channels and 10 rollers

Model/Product no.: LABV1IIDB/AMC4(10)

EUR 1,109.60

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: -II incl. AMC6(10) pump head with 6 channels and 10 rollers

Model/Product no.: LABV1IIDB/AMC6(10)

EUR 1,118.60

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: -II incl. AMC8(10) pump head with 8 channels and 10 rollers

Model/Product no.: LABV1IIDB/AMC8(10)

EUR 1,251.20

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: -II incl. AMC10(10) pump head with 10 channels and 10 rollers

Model/Product no.: LABV1IIDB/AMC10(10)

EUR 1,325.00

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg
Type: -III incl. AMC12(10) pump head with 12 channels and 10 rollers

Model/Product no.: LABV1IIIDB/AMC12(10)

EUR 1,568.10

(excl. VAT)

Ships in 2 weeks

Weight: 5 kg

LabV1-III peristaltic pump - laboratory tubing pump for precise dosing

The LabV1-III is a user-friendly peristaltic pump developed for precise dosing and safe liquid transfer in laboratories, analytical instruments and process applications. The pump provides a wide flow range from 0.0002 to 775 mL/min depending on the pump head and tubing and supports single-, dual- and multichannel pump heads.

The LabV1-III DB is an upgraded version of the popular LabV1 tubing pump. The model combines functionalities from the LabV and LabF series and provides a flexible and user-friendly solution for precise dosing and liquid transfer in both laboratory and industrial environments. The LabV1-III tubing pump is typically used in pharmaceutical production, universities, laboratories and process plants where stable and precise peristaltic pump technology is required.

Main features

Industrial 4.3” color LCD with touchscreen and mechanical keypad
Software platform based on functions from the LabV and LabF series
Display of both motor speed (rpm) and flow rate (mL/min)
Dosing functions: fixed volume, fixed time/volume and time-controlled start/stop
Intelligent calibration with online fine adjustment
Supports single-, dual- and multichannel pump heads (EasyPump I-VI and AMC series)
RS232/RS485 communication with MODBUS RTU
External control via 0-5 V, 0-10 V or 4-20 mA signal
3-year manufacturer warranty

Technical specifications

Flow range: 0.0002-775 mL/min
Flow resolution: 0.01 mL/min
Speed range: 0.1-150 rpm
Speed resolution: 0.01 rpm
Dosing volume: 0.01-9999 mL
Volume resolution: 0.01 mL
Dosing accuracy: ≤ ±0.5 %
Back suction angle: 0-360°
Motor: stepper motor
Interface: RS232, RS485 (MODBUS RTU)
External signals: 0-5 V, 0-10 V, 4-20 mA
Start/stop and direction: active or passive switch signal
Status output: open collector
Power supply: 220 V ±10 %, 50/60 Hz (110 V optional)
Power consumption: < 80 W
Operating temperature: 0-40 °C
Relative humidity: ≤ 80 %
Dimensions (L × W × H): 259 × 157 × 237 mm
Weight: 4.40 kg

Certifications

CE
RoHS

Documentation

The LabV1-III tubing pump is supplied with technical documentation and a user manual. An English user manual is included.

Pump heads and flow range

The LabV1-III tubing pump can be used with EasyPump pump heads for standard dosing tasks as well as AMC multichannel pump heads for low-flow multichannel dosing.

Flow range for EasyPump pump heads for the LabV1-III tubing pump

Pump head	Tubing no.	Tubing dimensions (ID × wall mm)	Flow per revolution (mL/r)	Flow range (mL/min)
EasyPump I/II	13#	0.8 × 1.6	0.053	0.0053-8
	14#	1.6 × 1.6	0.27	0.027-41
	19#	2.4 × 1.6	0.55	0.055-83
	16#	3.1 × 1.6	0.933	0.093-140
	25#	4.8 × 1.6	1.967	0.197-295
	17#	6.4 × 1.6	3.333	0.333-500
	18#	7.9 × 1.6	4.3	0.430-645
EasyPump III/IV	15#	4.8 × 2.4	1.8	0.180-270
	24#	6.4 × 2.4	2.733	0.273-410
	35#	7.9 × 2.4	3.833	0.383-575
	36#	9.6 × 2.4	5.167	0.517-775
EasyPump V/VI	13#	0.8 × 1.6	0.053	0.0053-8
	14#	1.6 × 1.6	0.27	0.027-41
	19#	2.4 × 1.6	0.55	0.055-83
	16#	3.1 × 1.6	0.933	0.093-140
	25#	4.8 × 1.6	1.967	0.197-295

Flow rate for AMC multichannel pump heads for the LabV1-III tubing pump

Tubing dimension (mm)	Motor speed	Flow rate 10 rollers (mL/min)	Flow rate 6 rollers (mL/min)	Max. intermittent pressure (MPa)	Max. continuous pressure (MPa)
1 × 1	0.1-150 rpm	0.0050-7.55	0.0062-9.36	0.1	0.1
2 × 1		0.0183-27.52	0.0220-33.06
2.4 × 0.8		0.0254-38.13	0.0319-47.81
3 × 1		0.0323-48.38	0.0434-65.17
0.13 × 0.86		0.0002-0.29	0.0002-0.31
0.19 × 0.86		0.0003-0.44	0.0003-0.46
0.25 × 0.86		0.0005-0.76	0.0005-0.80
0.51 × 0.86		0.0013-2.00	0.0014-2.05
0.89 × 0.86		0.0030-4.47	0.0031-4.65
1.14 × 0.86		0.0061-9.16	0.0065-9.74
1.42 × 0.86		0.0125-18.75	0.0142-21.28
2.06 × 0.86		0.0197-29.60	0.0234-35.17
2.79 × 0.86		0.0286-42.86	0.0372-55.77

Weight	4.4 kg
Material	ABS
CE marking	Yes
IP-Rating	IP31
Speed	0.1-150 rpm
Power supply	AC220V +/- 10%, 50Hz/60Hz
Operating Temperature	0-40 ℃
Relative humidity	< 80%
Size (Length)	259 mm
Size (Height)	237 mm
Size (Width)	157 mm
