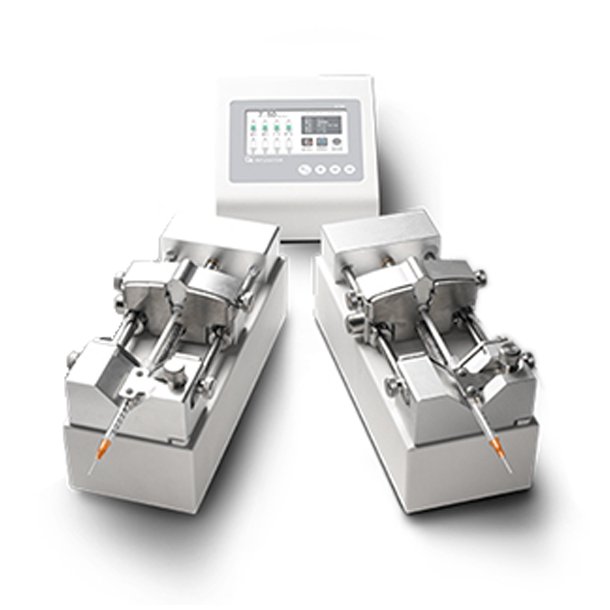

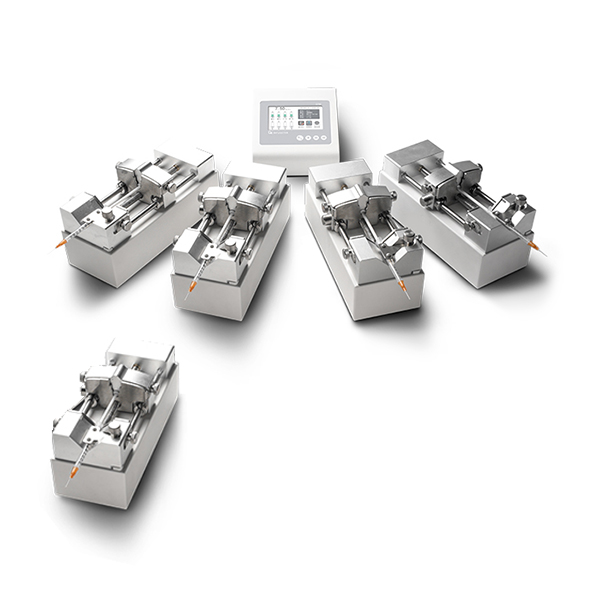

SPM Syringe Pump
The SPM syringe pump is adaptable with up to 8 pump units and supports various syringe types and sizes. It is specifically designed for laboratory use (not for medical applications).
The syringe pump features an infusion and withdrawal function and ensures highly precise transfer at micro flow rates.

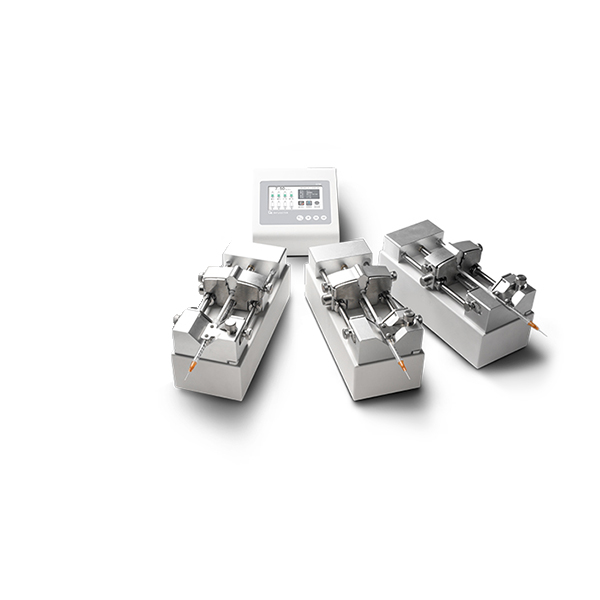

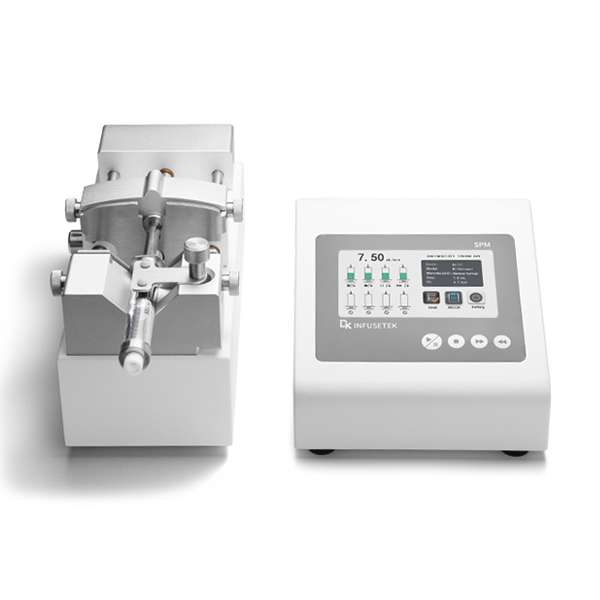

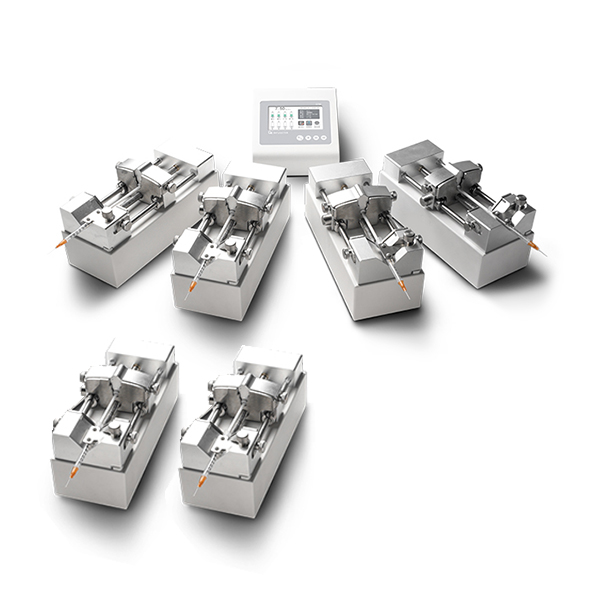

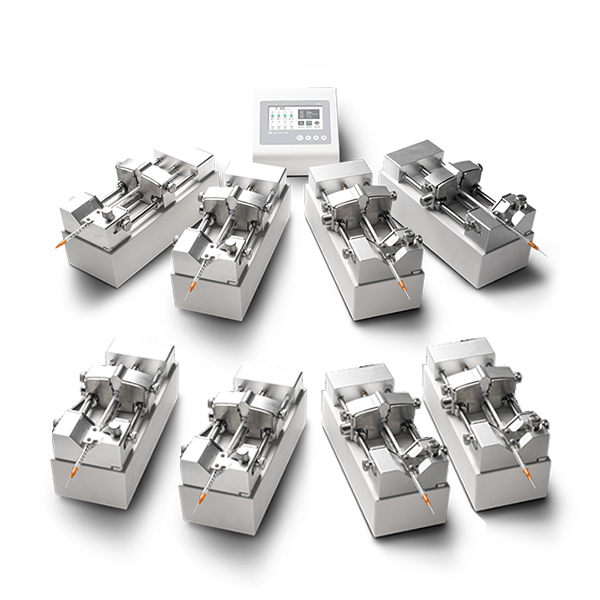

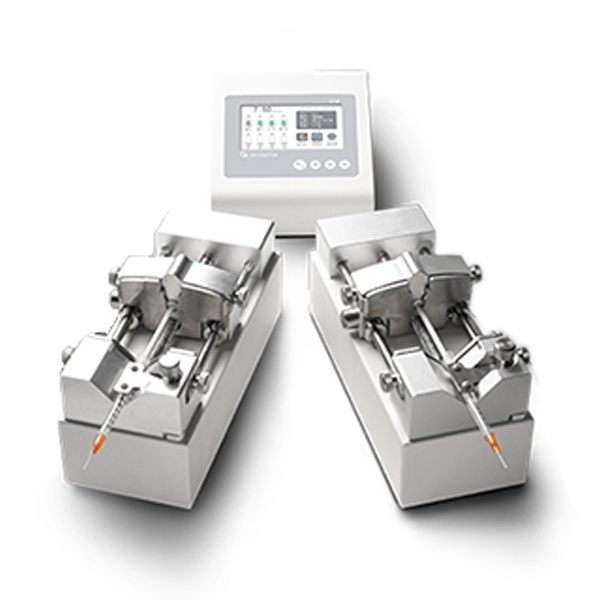

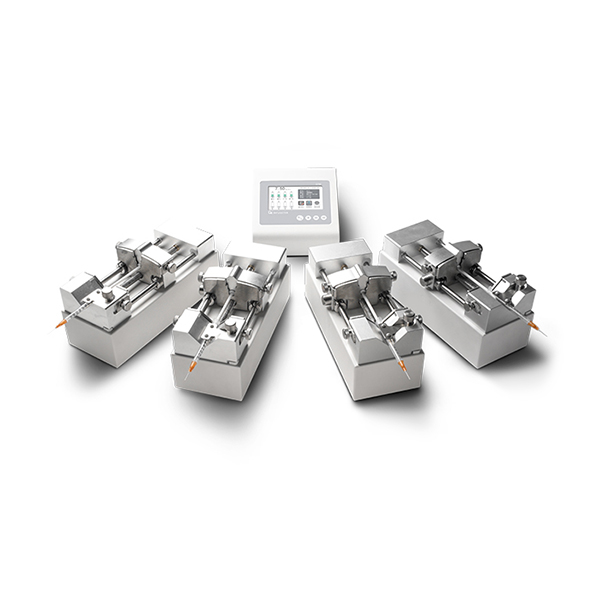

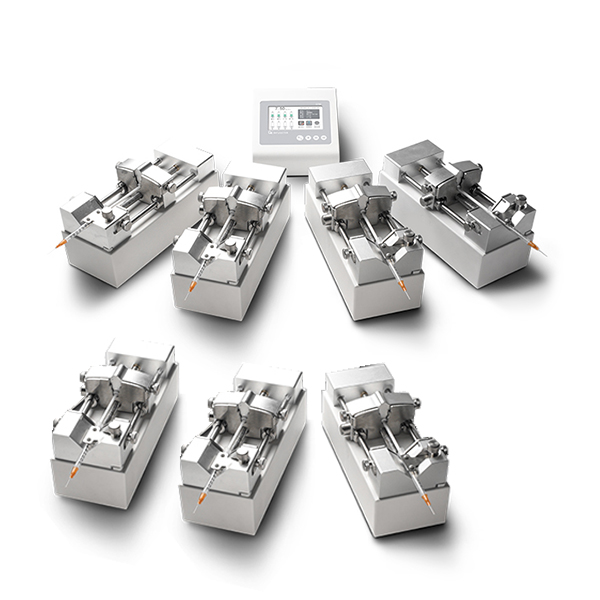

The set includes a 4.3" touchscreen controller, capable of managing up to 8 independent pump units. Each unit can be monitored separately. Additionally, various types and sizes of syringes and injectors can be used.
Features
- 4.3" color display with touchscreen for intuitive operation.
- Simple and user-friendly operation.
- Displays up to 8 pump units on the same screen.
- Real-time monitoring with animated result display.
- Modular design: Separate pump units provide flexibility.
- Individual alarms: The controller can issue warnings for each unit separately.
- Independent working mode: Each unit operates autonomously and can pump at different speeds simultaneously or at different intervals.
- Intelligent calibration: Ensures precise dosing. Online micro-adjustments help minimize volume errors.
- Reduces air bubbles: Adjustable backflow function improves volume accuracy.
- Fast forward and reverse function for quick syringe loading, flushing, and venting.
- CE-certified in compliance with safety and industry standards.
Specifications
- Operating modes: Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion.
- Pump units: Adjustable with 1–8 units (optional).
- Compatible syringe sizes:
- ZU-I: 0.5 μL – 50 mL
- Syringe selection: Adjustable size and individual diameter.
- Linear speed range: 1 μm/min – 132 mm/min (Flow rate = Linear speed × syringe inner cut area).
- Minimum linear speed: 1 μm/min.
- Maximum propulsion force: ≥16 Kgf.
- Maximum propulsion distance: 90 mm.
- Infusion volume per micro-step: 0.078 μm/μstep.
- Accuracy: Error ≤ ±0.5 % (for ≥30 % of the maximum stroke).
- Backflow distance: 0.01 – 5 mm.
- Working mode: Independent working mode.
- Storage: Up to 10 different working modes can be saved.
- Display: 4.3" industrial-grade LCD color display.
- Control method: Touchscreen and mechanical keyboard.
- Power-off memory: Displays the last-used parameters upon restart.
- External control signal: Start/stop signal, active signal (5–24V).
- Communication interface: RS232/RS485, Modbus protocol (RTU mode).
- Power supply:
- Controller: DC 5V/10W.
- Pump unit: DC 24V/30W.
- Operating temperature: 0 – 40°C.
- Relative humidity: <80%.
- IP rating: IP31.
- Dimensions:
- Controller: 160 × 150 × 95 mm.
- Pump unit: 257 × 110 × 131 mm.
- Weight:
- Controller: 1.0 kg.
- Pump unit: 3.0 kg.
User Manual
- Supplied with an English user manual.
Parameters
| Syringe | Inside diameter (mm) | Flow rate (μl/min-ml/min) |
| ZU-I | ||
| 1 ml | 4.70 | 0.174~2.290 |
| 2 ml | 9.70 | 0.0739~9.755 |
| 5 ml | 12.48 | 0.1223~16.147 |
| 10 ml | 15.89 | 0.1983~26.177 |
| 20 ml | 20.00 | 0.3142~41.469 |
| 30 ml | 22.50 | 0.3976~52.484 |
| 50 ml | 28.90 | 0.6560~86.588 |
