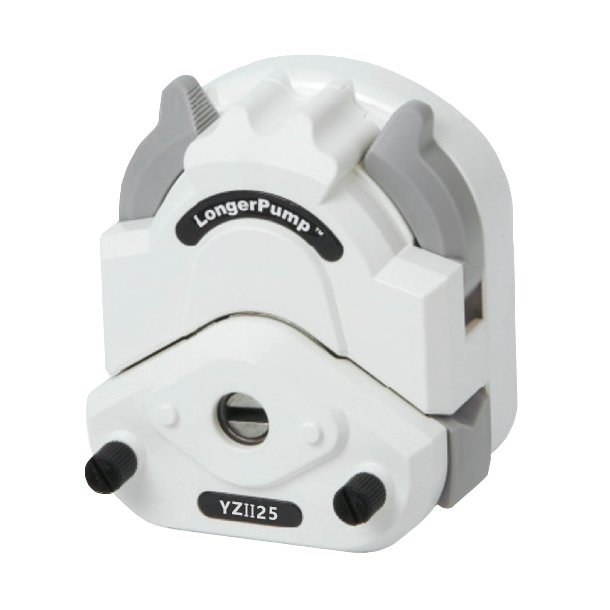

LP-YZII25 Pump head

EUR 278.50

(excl. VAT)

The LP-YZII25 pump head allows you to change tubing easily and rapidly and is compact in size.
This pump head has a special tubing retention linkage which makes it even easier to load the tubing. It accepts several sizes of tubing for a wide flow range.

Model/Product no.: LP-YZII25

Weight: 0.35 kg

Stock status: 1 pcs. in stock

pcs.

Pump head that allows you to change tubing easily and rapidly

The LP-YZII25 pump head allows you to change tubing easily and rapidly and it is compact in size.
This pump head has a special tubing retention linkage which makes it even easier to load the tubing. It accepts several sizes of tubing for a wide flow range.
The rollers on the pump head are made from high quality materials. The housing material is PESU and is perfectly structured and solid.
It is stable and autoclavable (200 °C).

Specifications

Pump head	Tubing sizes #	Housing Material	Roller	Number of rollers	Weight (kg)
			Material
LP-YZII25	15, 24, 35, 36	PESU	SS	3	0.35

*Measured with water

Pump head	Tubing size #	*Flow rate (ml/min) at 0.1 rpm**	*Flow rate (ml/min) at** 1 rpm	*Flow rate (ml/min)** at 100 rpm	*Flow rate (ml/min)** at 300 rpm	*Flow rate (ml/min)** at 600 rpm
LP-YZII25 (3 rollers)	15	0.16	1.6	160	480	960
	24	0.26	2.6	266.7	800	1600
	35	0.36	3.6	366	1100	2200
	36	0.5	5.0	500	1500	3000

*Measured with water

Choose the right tubing

See our selection of peristaltic tubings to choose the best tubing for your purpose.
