Vortex Mixer AHN myLab
AHN BiotechnologieSpeed up to 4,200 rpm
Operating temperature between 5 and 40 °C
Can withstand humidity up to 80%
Maximum load capacity: 500 g
Dimensions (W×D×H): 205 × 136 × 138.5 mm
EUR 279.20

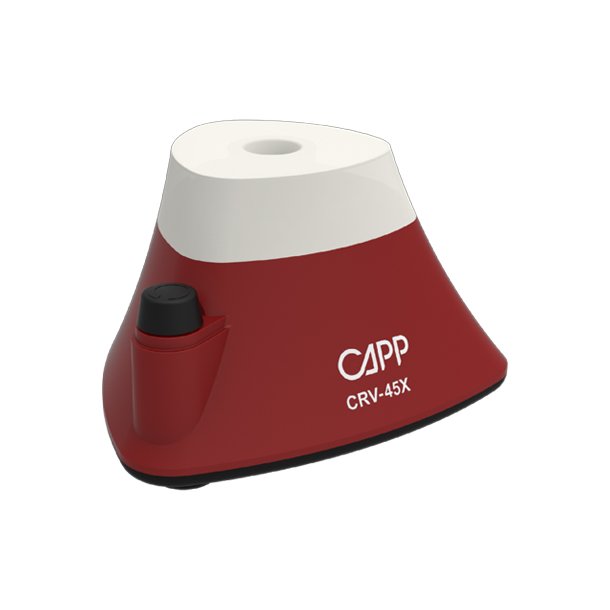

(excl. VAT)The CAPPRondo Mini Vortex Mixer is a perfect solution for fast and thorough sample mixing in the laboratory. With speeds of up to 4,500 rpm and a 4.5 mm orbital motion, it delivers instant and efficient vortexing of tubes up to 30 mm in diameter, and features highly touch-sensitive activation.
Speed is easily adjusted using the control dial, and the microprocessor-controlled system ensures constant and stable speed — even under varying load conditions. This makes the mixer both precise and reliable for all standard applications.
The well-balanced design and built-in counterbalance system minimize noise and vibration, while the anti-slip feet keep the unit stable, even at maximum speed. The brushless DC motor enables fast acceleration, low heat generation and almost maintenance-free operation — and is well suited for use in cold rooms and incubators (5–40 °C).
Features
- Fast and consistent mixing up to 4,500 rpm
- 4.5 mm orbital motion for efficient homogenization
- Touch-activated operation for real-time mixing
- Variable speed via easy-to-use control dial
- Microprocessor-controlled for constant rpm under load
- Compact, low-profile design to save bench space
- Anti-slip feet and vibration-dampening construction
- Quiet operation with built-in counterbalance system
- Brushless DC motor — safe, fast and low-maintenance
- Suitable for cold rooms and incubators (5–40 °C)
- Chemical-resistant PC/ABS housing
- Durable die-cast aluminum base for maximum stability
- 2-year manufacturer’s warranty
Specifikationer
| Feature | Value |
| Max speed | 4.500 rpm |
| Orbital motion | 4,5 mm |
| Max tube diameter | 30 mm |
| Motor | Brushless DC |
| Operating temperature | 5 - 40°C |
| Humidity tolerance | Up til 80% |
| Dimensions | 100 x 100 x 67 mm |
| Weight | 0,55 kg |
| Protection class | IP 43 (DIN EN 60529) |
| Power supply | 230 V |
| Warranty | 2 years |
| Title | Type | Size | Download |
|---|---|---|---|
| CAPPRondo-Mini-Vortex-Mixer-CRV-45X.pdf | 423.76KB | Download | |
| CAPP-CRV-45X-Mini-Vortex-Mixer-Manual.pdf | 4.53MB | Download |
