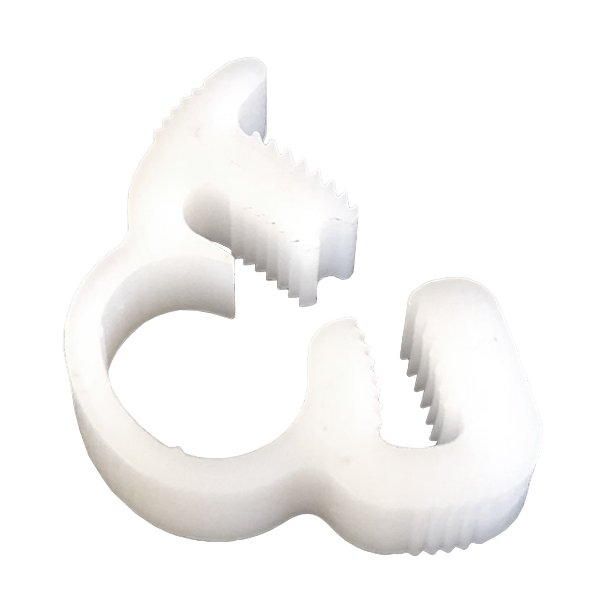

(excl. VAT)Tube Clamp for YZ1515x 6-Roller Pump Head
This tube clamp is designed to prevent tubing from being pulled into the Shenchen YZ1515x 6-roller pump head, providing a secure hold at both ends.
Quick and easy to install, it keeps tubing stable during operation, ensuring smooth fluid transfer. Ideal for use with both silicone and Pharmed tubing, it offers reliable performance in lab and industrial settings.
Application Note: Select the appropriate clamp size based on tube diameter for optimal results.
Instructions for Using Clamps with the YZ1515X 6-Roller Pump Head
To ensure optimal performance and secure tube placement on the YZ1515X 6-roller pump head, please follow these instructions for proper clamp installation:
- Position the Clamp: After positioning the tubing on the pump head, gently open the clamp by hand. Place it approximately 1 cm from each side of the pump head on the tubing.
- Secure the Clamp: Using either your hands or needle-nose pliers, attach the clamp by aligning it with the specified number of teeth as indicated in the instructions for your tubing size.
- Adjust the Clamp Position: Slide the clamps closer to the pump head for a secure fit.
Refer to the table below for the recommended clamp model, quantity per tube (usage quantity = single-side usage quantity × 2), and clamping teeth number for each tube type.
Number of Clamps used for Silicone Tubing in the YZ1515x 6-roller Pump Head
| Silicone Tubing | Tube Stop and Tube Clamp | Quantity (one side) | Clamping teeth number |
| 13# | Yellow Tube Stop + 25# tube clamp | 2 yellow tube stops + 25# tube clamp | 1 |
| 14# | 14# (3.8-4.3mm) Clamp | 1 tube clamp | 5 |
| 19# | 19# (4.4-4.9mm) Clamp | 1 tube clamp | 1 |
| 16# | 16# (5.0-5.5mm) Clamp | 1 tube clamp | 4 |
| 25# | 25# (6.1-6.5mm) Clamp | 2 tube clamps | 3 |
| 17# | 17# (7.6-8.5mm) Clamp | 2 tube clamps | 4 |
| 18# | 18# (9.1-10.2mm) Clamp | 2 tube clamps | 4 |
Number of Clamps used for PharMed BPT Tubing in the YZ1515x 6-roller Pump Head
| PharMed Tubing | Tube Stop and Tube Clamp | Quantity (one side) | Clamping teeth number |
| 13# | Yellow Tube Stop + 25# tube clamp | 1 yellow tube stop + 25# tube clamp | 1 |
| 14# | 14# (3.8-4.3mm) Clamp | 1 tube clamp | 5 |
| 19# | 19# (4.4-4.9mm) Clamp | 1 tube clamp | 1 |
| 16# | 16# (5.0-5.5mm) Clamp | 1 tube clamp | 3 |
| 25# | 25# (6.1-6.5mm) Clamp | 1 tube clamp | 1 |
| 17# | 17# (7.6-8.5mm) Clamp | 1 tube clamp | 3 |
| 18# | 18# (9.1-10.2mm) Clamp | 2 tube clamps | 4 |
| Title | Type | Size | Download |
|---|---|---|---|
| Installation-Procedure-for-TubeClampsforYZ1515x6rollers-pump-head.pdf | 118.64KB | Download |
