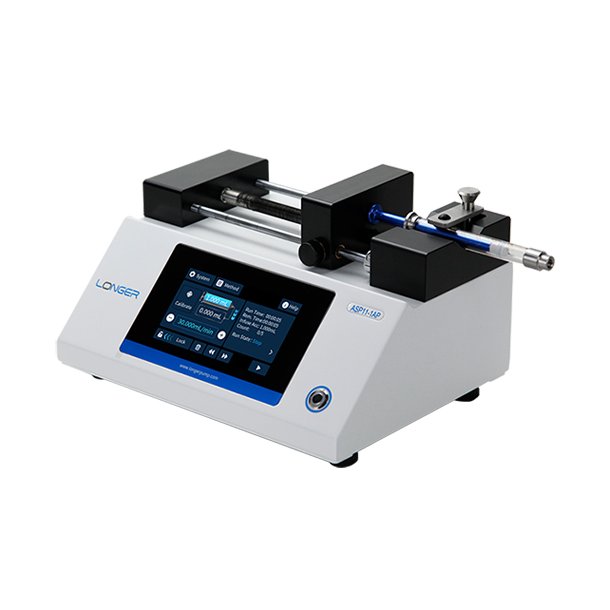

ASP11-1AP Digital Syringe Pump

ASP11-1AP Digital Syringe Pump

EUR 1,881.40

(excl. VAT)

The ASP11-1AP is a compact high-resolution digital syringe pump from Longer, designed for precise dosing of small liquid volumes. Its robust design combined with a color touchscreen and real-time adjustment makes it ideal for applications requiring high accuracy and control. A reliable solution for precise liquid handling in laboratories and automated systems.

Key features:

  • Precise, nearly pulseless dosing – even at ultra-low flow rates
  • Color touchscreen with vertical display option
  • Supports syringe sizes from 0.5 µL to 60 mL
  • Flow range: 0.9 pL/min – 29.5 mL/min
  • Real-time parameter adjustment during operation
  • LabVIEW-compatible and ready for integration via RS485 / Modbus
  • CE and UKCA certified
  • 3-year warranty

This model can be ordered even if not in stock. Estimated delivery time is approximately 3 weeks.

Contact us for technical advice or a non-binding quote.

Read more
Model/Product no.: LP-ASP11-1AP
Weight: 2.9 kg
Stock status: Not in stock
pcs.

ASP11-1AP Digital Syringe Pump – Compact and precise high-resolution solution

The ASP11-1AP from Longer is a digital syringe pump with a single channel and extra high resolution, designed for precise and repeatable dosing of small liquid volumes. Its compact and robust construction combined with a color touchscreen and real-time control makes it ideal for applications requiring accuracy and full control.

Key features:

  • Work mode: Single infuse, multiple infuse
  • Number of syringes: 1
  • Syringe sizes: 0.5 µL – 60 mL
  • Flow range (depending on syringe): 0.9 pL/min – 29.5 mL/min
  • Compatible with standard syringe brands and models (syringe not included)
  • Pusher resolution: 0.0088 µm/microstep
  • Linear speed: 0.1126 µm/min – 35.4 mm/min
  • Linear resolution: 0.1126 µm/min
  • Linear stroke length: ≤140 mm
  • Repeatability (CV): ≤0.3 % (for stroke >30 %)
  • Max pushing force: 320 N (adjustable between 20 % and 100 %)
  • Fast forward/backward: Max speed movement in infuse/withdraw direction
  • Start status: Stop at startup
  • EMC: CE and UKCA

Display and control:

  • Color touchscreen
  • Screen rotatable 90° for vertical display
  • Screen lock for accidental operation protection
  • Stores up to 20 custom programs
  • 20-parameter matrix for recall and editing
  • Status indicator lights:
    • Green: Ready/standby
    • Blue: Running
    • Red: Error
  • Audible alarm: Key press, process end, error
  • External connections:
    • Communication: RS485, Modbus RTU or OEM protocol
    • Status outputs: 2 (e.g. error, direction, program end)

Technical specifications:

  • Power supply: DC24V / 15W
  • Adapter: AC 90–260V
  • Dimensions (L × W × H): 240 × 180 × 137 mm
  • Weight: 2.9 kg
  • Operating temperature: 0 – 40 °C
  • Relative humidity: <80 %, non-condensing

Warranty and documentation:

  • 3-year warranty
  • CE and UKCA certified (EMC-compliant)
  • Includes LabVIEW drivers and automation software
  • Communication protocols and technical integration documents included

Flow data for selected syringe sizes:

Syringe Volume Inner Diameter (mm) Flow Range (nL/min – mL/min)
0.5 µL 0.10 0.0009 nL/min – 0.0003 mL/min
5 µL 0.35 0.0108 nL/min – 0.0034 mL/min
10 µL 0.50 0.0221 nL/min – 0.0069 mL/min
25 µL 0.80 0.0566 nL/min – 0.0178 mL/min
50 µL 1.00 0.1070 nL/min – 0.0336 mL/min
100 µL 1.60 0.2263 nL/min – 0.0711 mL/min
250 µL 2.30 0.4676 nL/min – 0.1470 mL/min
500 µL 3.25 0.9336 nL/min – 0.2935 mL/min
1 mL 4.72 1.9692 nL/min – 0.6191 mL/min
5 mL 13.10 15.169 nL/min – 4.7689 mL/min
10 mL 16.60 24.357 nL/min – 7.6575 mL/min
20 mL 19.00 31.909 nL/min – 10.032 mL/min
30 mL 23.00 46.759 nL/min – 14.700 mL/min
60 mL 29.14 75.056 nL/min – 23.597 mL/min
