The AHN myLab® Vortex Mixers are designed for quick and efficient mixing of samples in test tubes, microtubes, microplates, and flasks. They are ideal for laboratories seeking dependable mixers with high performance and easy operation.
The VT-02 offers adjustable speed up to 2,800 rpm, while the VT-03 reaches up to 4,200 rpm for more demanding applications. Both models feature a 4 mm orbital motion, ensuring fast and uniform sample mixing.
The mixers can be used in different modes:
- Touch Mode activates automatically when the tube is pressed against the rubber cup.
- Continuous Mode runs non-stop for longer mixing sessions.
- Standby Mode saves energy when the mixer is not in use.
Speed is easily adjusted by turning the control knob, and the mixer responds instantly.
Stable and Quiet Performance
Both models are equipped with suction cups that keep the mixer firmly in place on the bench. The brushless DC motor provides fast acceleration, low noise levels, and virtually maintenance-free operation.
Compact and Robust Design
With compact dimensions (205 × 136 × 138.5 mm) and a weight of approximately 3 kg, the mixers take up minimal bench space. The cast aluminum base ensures stability and long service life. They operate safely at temperatures between 5 °C and 40 °C and humidity levels up to 80%, making them suitable for use in both cold rooms and incubators.
Reliability and Warranty
The mixers feature an anti-vibration system, non-slip rubber feet, and IP43 protection against dust and splashes. Each unit comes with a two-year manufacturer’s warranty covering parts and performance.
Specifications
VT-02
- Adjustable speed up to 2,800 rpm
- Suitable for mixing single or multiple tubes
- Compatible with accessories for mixing microtubes, microplates, and flasks
- Orbital motion: 4.0 mm
- Power supply: 230 V
- Motor: Brushless DC motor
- Maximum load capacity: 500 g
- Operating temperature: 5–40 °C
- Maximum humidity: up to 80%
- Dimensions (W×D×H): 205 × 136 × 138.5 mm
- Weight: 3.0 kg
- Protection class: IP43 (DIN EN 60529)

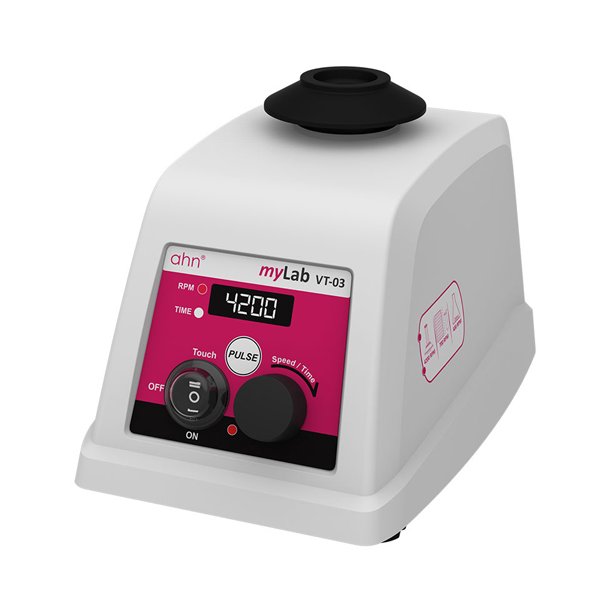

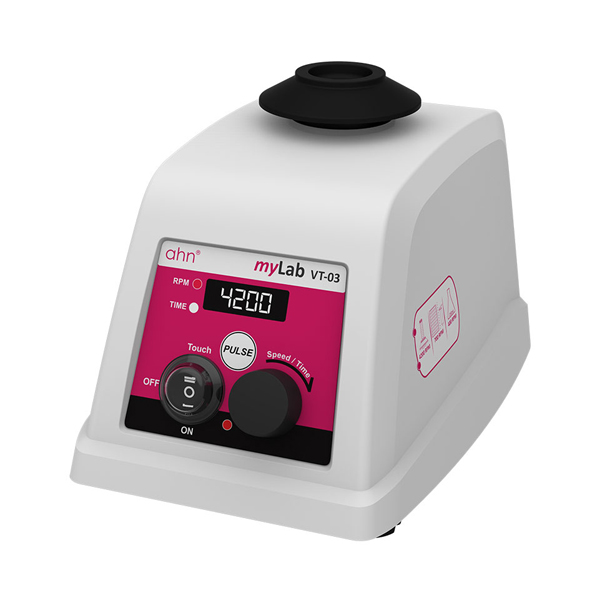

VT-03
- Adjustable speed from 300 to 4,200 rpm
- Suitable for mixing single or multiple tubes
- Compatible with accessories for mixing microtubes, microplates, and flasks
- With optional attachments, can mix 1.5 and 2.0 ml microtubes or flasks up to 250 ml
- Orbital motion: 4.0 mm
- Maximum tube diameter: 30 mm
- Display: Digital
- Power supply: 230 V
- Motor: Brushless DC motor
- Maximum load capacity: 500 g
- Operating temperature: 5–40 °C
- Maximum humidity: up to 80%
- Dimensions (W×D×H): 205 × 136 × 138.5 mm
- Weight: 2.8 kg
- Protection class: IP43 (DIN EN 60529)
