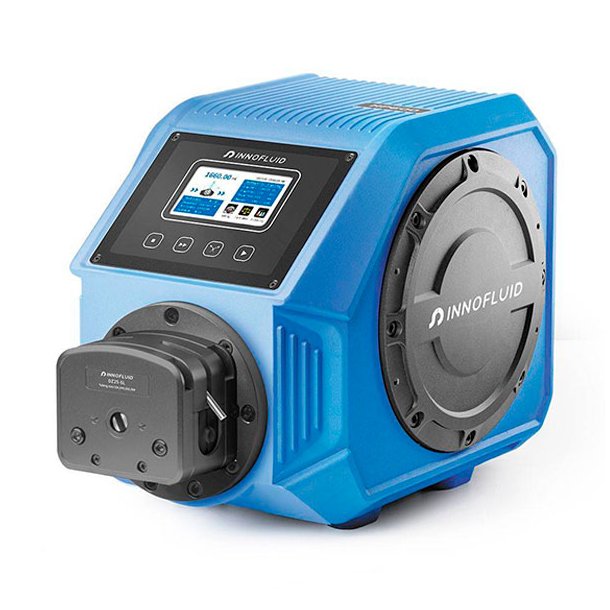

The HP600 is an industrial peristaltic pump designed for demanding industrial environments. The pump is specified with a high enclosure rating (IP66/IP67/IP68) and is engineered for stable operation in wet and harsh operating conditions. The pump is suitable for both continuous transfer and precise dispensing.
| Drive | Pump head | Housing material | Weight (kg) | Tube clamp material | Tubing size | ID × wall thickness (mm) | mL/r | Speed (rpm) | Flow rate (mL/min) |
|---|---|---|---|---|---|---|---|---|---|
| HP600 | DZ25-6L | PPS | 0.85 | Polyamide | 15# | 4.8 × 2.4 | 3 | 0.1–600 | 0.3–1800 |
| 24# | 6.4 × 2.4 | 5.5 | 0.55–3300 | ||||||
| Aluminum alloy | 1.87 | 35# | 7.9 × 2.4 | 8 | 0.8–4800 | ||||
| 36# | 9.6 × 2.4 | 10 | 1–6000 |
| Drive | Pump head | Tubing | Filling volume (mL) | Filling time (s) | Accuracy (±%) | Output (pcs/min) | Motor speed (rpm) |
|---|---|---|---|---|---|---|---|
| HP600 | DZ25-6L | 15# | 30 | 1.2 | 0.5 | 27 | 500.0 |
| 24# | 50 | 1.2 | 0.5 | 27 | 454.6 | ||
| 35# | 70 | 1.2 | 0.5 | 27 | 437.5 | ||
| 36# | 100 | 1.5 | 0.5 | 24 | 400.0 |
Experimental conditions: standard atmospheric pressure, room temperature at 20 °C, the liquid is pure water, no pressure, no suction and lift. This data is for reference only.
The industrial peristaltic pump HP600 with DZ25-6L pump head is a flexible and reliable solution for precise fluid handling in environments where both performance and robustness are critical.
| Certifications/Compliances | EMC Standards: IEC 61000-6-2, IEC 61000-6-4, IEC 61000-3-3, EEC 61000-6-2. |
| Weight | 6.2 kg |
| Material | Aluminium alloy |
| CE marking | Yes |
| IP-Rating | IP66 |
| Speed | 0.1 - 600 rpm |
| Flow rate | 0.211- 3100 ml/min |
| Power supply | AC110-220V +/- 10%, 50/60 Hz |
| Operating Temperature | 0-40 ℃ |
| Relative humidity | < 100% |
| Size (Length) | 274 mm |
| Size (Height) | 221 mm |
| Size (Width) | 160 mm |
| Caption | Representative image only |
| Title | Type | Size | Download |
|---|---|---|---|
| HP600-DZ25-6L-IP66-IP67-IP68-Industrial-Peristaltic-Pump-Datasheet-2025.pdf | 4.70MB | Download | |
| HP-series-IP67-Industrial-Peristaltic-Pump-Catalogue-2024-1.pdf | 17.20MB | Download |
Powerful industrial peristaltic pump
Operating modes: Flow rate and dispensing
Speed: 0.1-600 rpm
Flow rate range: 0.211-6000 mL/min
Number of pump heads: 1-2
Communication: RS485, Modbus protocol
External control: 0-5V, 0-10V, 4-20mA
Safety: Open Head Sensor, three-level access control
Material: Aluminum alloy
Protection class: IP66
