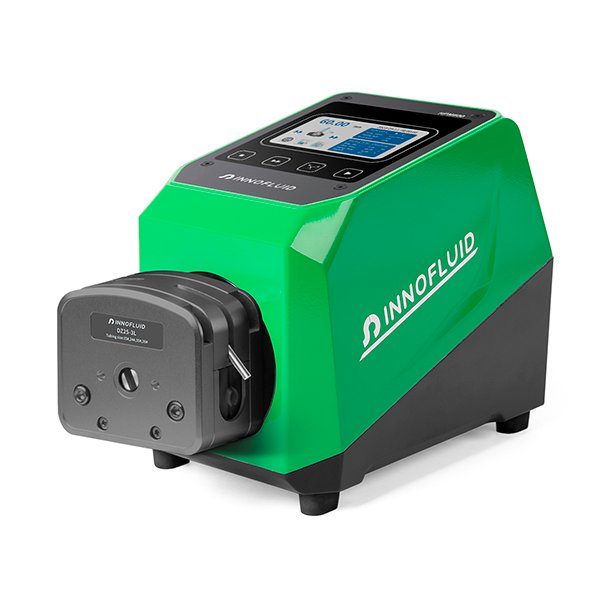

Representative image only

HPM600 DZ25 Industrial Peristaltic Pump

Price from EUR 2,568.60

(excl. VAT)

The HPM600 DZ25 is an industrial peristaltic pump designed for precise liquid transfer and dosing in demanding environments. With high capacity, robust construction and IP66 protection, it is ideal for applications in pharma, food production, water treatment and laboratories.

Safety features: Open Head Sensor, three-level access control
IP rating: IP66 – dust-tight and protected against powerful water jets
Pump head: DZ25-3L or DZ25-6L (fast-load), compatible with 15#, 24#, 35#, 36# tubing
Flow rate:
- 0.211–3600 mL/min (DZ25-3L)
- 0.3–6000 mL/min (DZ25-6L)
Speed range: 0.1–600 rpm with 0.01 rpm resolution
Operation and control: 4.3" touchscreen, transfer/dispense functions, RS485/Modbus and external input 0–5 V/0–10 V/4–20 mA

If the desired configuration is not in stock, it can be delivered within 2–3 weeks.

HPM600 DZ25 Industrial Peristaltic Pump

Items

Price

Note

Quantity

Type: with DZ25-3L ALU pump head

Model/Product no.: HPM600/DZ25-3LALU

EUR 2,831.40

(excl. VAT)

approx. 3 weeks delivery

Weight: 13.5 kg
Type: with DZ25-3L PPS pump head with 1 channel

Model/Product no.: HPM600/DZ25-3L-PPS

EUR 2,568.60

(excl. VAT)

approx. 3 weeks delivery

Weight: 13.14 kg
Type: with 2 pcs. DZ25-3L PPS pump heads

Model/Product no.: HPM600/2*DZ25-3L-PPS

EUR 2,743.80

(excl. VAT)

approx. 3 weeks delivery

Weight: 14 kg
Type: with DZ25-6L PPS pump head

Model/Product no.: HPM600/DZ25-6L-PPS

EUR 2,777.80

(excl. VAT)

approx. 3 weeks delivery

Weight: 14.5 kg
Type: incl. DZ25-6L ALU pump head

Model/Product no.: HPM600/DZ25-6L-ALU

EUR 3,006.50

(excl. VAT)

approx. 3 weeks delivery

Weight: 15.5 kg

HPM600 Industrial Peristaltic Pump with DZ25-3L or DZ25-6L Pump Head

The HPM600 industrial peristaltic pump is specifically designed to meet the demands of challenging industrial environments. With an IP66-certified construction, the pump is highly resistant to dust and water, ensuring stable operation even in harsh and humid conditions. This peristaltic pump is ideal for precise dispensing and liquid transfer in the pharmaceutical, chemical, and food industries.

Features

IP66 certification: Provides full protection against dust and water ingress, making it ideal for demanding environments.
Durable design: Constructed from aluminum alloy, offering high strength and excellent heat dissipation.
Precise control: Intuitive 4.3” color touchscreen and mechanical keypad for user-friendly operation.
Advanced functions: Automatic calibration, three levels of access management, and flexible control options via RS485 communication and Modbus protocol.
Adjustable flow rate: Supports flow rates from 0.211 mL/min to 6000 mL/min, depending on the selected pump head.

Technical Specifications

EMC standard: IEC 61000-6-2 / IEC 61000-6-4 / IEC 61000-3-2 / IEC 61000-3-3
Housing material: Aluminum alloy
Speed range: 0.1-600 rpm
Speed adjustment resolution: 0.01 rpm
Display: 4.3” industrial-grade color LCD screen
Control options: Touchscreen, mechanical keypad, external control, and communication control
Operating functions: Transfer function and dispensing function
- Transfer function: Continuous operation at a fixed flow rate and speed
- Dispensing function:
  - Standard dispensing: Set volume, time, repeat numbers, and pause time.
  - Advanced dispensing: Set volume, flow rate, repeat numbers, and pause time.
  - Speed dispensing: Set speed (rpm), time, repeat numbers, and pause time.
Dispensing volume range: 0.1 mL - 9999 L
Dispensing time range: 0.1 sec - 9999 hours
Pause time range: 0.5 sec - 9999 hours
Repeat numbers: 1-9999 times (0 means unlimited)
Calibration: Automatic calibration after inputting actual liquid volume
Back suction angle: 0-360°
Communication interface: RS485
Communication protocol: Modbus protocol (RTU mode)
External control speed signal: 0-5V, 0-10V, 4-20mA (can be selected)
External control signal input: Active switch signal (5-24V) for start/stop and direction; passive switch signal for start/stop
Signal output: Open-collector output for operational status or alarms; 4-20mA output for monitoring flow or system status
Safety function: Automatic stop function when the cover is opened to prevent malfunction and enhance safety
Three levels of access management: Configurable operational permissions
Dimensions: 274 mm x 160 mm x 221 mm (L x W x H)
Power supply: AC110-220V ±10%, 50/60Hz
Power consumption: 110W
Operating temperature: 0-40°C
Weight: 6.2 kg
Maximum relative humidity: <100 %
Protection level: IP66

Applications

The HPM600 is ideal for applications where reliability and precision are essential, including laboratories, pharmaceutical production, and food processing. The pump ensures efficient liquid transfer and accurate dispensing, even in demanding conditions.

Advantages of DZ25-3L and DZ25-6L Pump Heads

DZ25-3L: Flow rate from 0.211 to 3600 mL/min.
DZ25-6L: Higher capacity with a flow rate of up to 6000 mL/min.

Both pump heads ensure smooth and precise liquid transfer. For DZ25-6L, it is recommended to use softer tubing materials, such as silicone tubing.

User Manual

Delivered with an English user manual.

Flow Rate Parameters

Drive	Pump Head	Tubing Size (#)	Tubing Dimensions IDxWT (mm)	Flow rate (ml/min/channel) ved 0,1 - 600 rpm (measured with water)
HPM600	1 or 2 pcs. DZ25-3L	15	4.8 x 2.4	0.211 - 1264
		24	6.4 x 2.4	0.385 - 2310
		35	7.9 x 2.4	0.508 - 3050
		36	9.6 x 2.4	0.6 - 3600
	DZ25-6L	15	4.8 x 2.4	0.3 - 1800
		24	6.4 x 2.4	0.55 - 3300
		35	7.9 x 2.4	0.8 - 4800
		36	9.6 x 2.4	1.0 - 6000

Certifications/Compliances	EMC Standards: IEC 61000-6-2, IEC 61000-6-4, IEC 61000-3-3, EEC 61000-6-2.
Weight	6.2 kg
Material	Aluminium alloy
CE marking	Yes
IP-Rating	IP66
Speed	0.1 - 600 rpm
Flow rate	0.211- 3100 ml/min
Power supply	AC110-220V +/- 10%, 50/60 Hz
Operating Temperature	0-40 ℃
Relative humidity	< 100%
Size (Length)	274 mm
Size (Height)	221 mm
Size (Width)	160 mm
