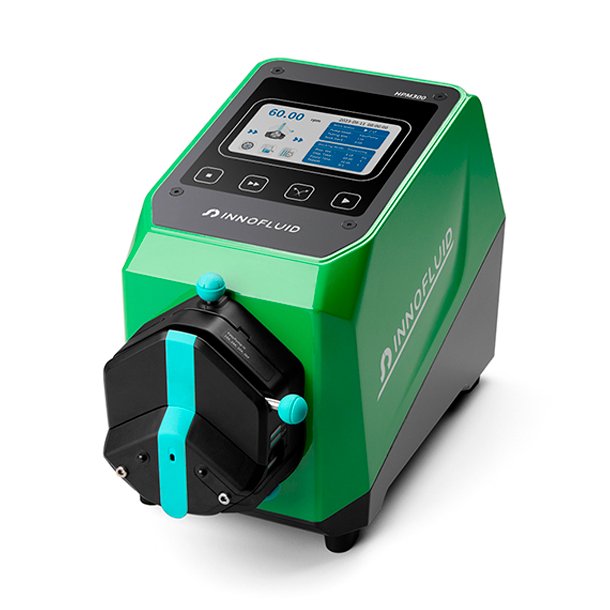

HPM600 Industrial Peristaltic Pump
The HPM600 Industrial Peristaltic Pump is the ideal solution for demanding industrial environments, expertly designed to deliver reliable performance and long-lasting durability. With an impressive IP66 protection level, this peristaltic Pump excels in challenging conditions where protection against dust and water is crucial.
Function and Key Features
- Six Innovative Sealing Structures: Optimized to withstand high temperatures and humidity, ensuring stable operation over time.
- Intelligent Control System: Supports both transferring and dispensing functions, making it versatile for a wide range of applications, including laboratories and production lines.
- User-Friendly 4.3-Inch Touch Screen: Facilitates easy parameter setting and calibration, enabling operators to quickly adapt to different operational needs.
Applications
The HPM600 Industrial peristaltic pump is suitable for various applications, including
- Laboratory Use
- Chemical Processing Industry
- Food and Beverage Industry
Technical Specification
- Housing material: Aluminium alloy
- Speed range: 0.1-600 rpm
- Speed resolution: 0.01 rpm
- Flow rate range: 0.053-3100 ml/min
- Display: 4.3-inch Industrial-Grade color LCD screen
- Control Methods: Touch screen, mechanical keypad, external control signals, and communication control
- Operating modes: Flow rate mode, dispensing mode (Including fixed volume dispensing and speed dispensing)
- Flow rate mode: Continuous transfer according to the set flow rate or motor speed
- Dispensing modes:
- Normal dispensing: Set the dispensing volume, dispensing time, pause time and repeat numbers
- Fixed volume dispensing: Set the dispensing volume, flow rate, pause time and repeat numbers
- Speed dispensing: Set speed (rpm), time, repeat numbers, pause time
- Dispensing volume range: 0.1mL-9999 L
- Dispensing time range: 0.1 sec-9999 hours
- Pause time: 0.5 sec - 9999 hours
- Repeat number: 1-9999 times, 0 represents unlimited
- Calibration function: Input actual volume and calibrate automatically
- Back suction angle: 0-360°
- Communication interface: RS485
- Communication protocol: Modbus protocol (RTU mode)
- External control speed signal: 0.5V, 0.10V, 4-20mA
- External control signal input: Active switch signal (5-24V) control start/stop, direction and full speed. Passive switch signal control start/stop
- External control signal output: Open collector output working status
- Signal output: Open collector output operation status
- Digital output function: 4-20 mA output
- Open cover to stop function: Prevents unintended operation and effectively ensures user safety
- User access control: Three levels of user access
- Drive dimensions: (LxWxH): 274 x 160 X 221 mm
- Power supply: AC110-220V, 50/60Hz
- Power consumption: 100 W
- Relative humidity: <90%
- Operating temperature: 0-40°
- Weight without pump head: 6.2 kg
- IP-Rating: IP66 (GB/T4208-2017, Q/BSC01-2019)
Operating Manual
- Supplied with English operating manual
Flow Rate Parameters
| Drive | Pump Head | Pump Head Material |
Tubing | mL/r | Motor Speed (rpm) |
Flow Rate (mL/min) |
|
| Size | IDxWall Thickness | ||||||
| HPM600 | EasyPumpI/III Single Channel |
Engineering Plastic / pps |
13# | 0.8 x 1.6 (mm) | 0.053 | 0.1-600 | 0.0053-32 |
| 14# | 1.6 x 1.6 (mm) | 0.27 | 0.027-162 | ||||
| 19# | 2.4 x 1.6 (mm) | 0.55 | 0.055-330 | ||||
| 16# | 3.1 x 1.6 (mm) | 0.933 | 0.093-560 | ||||
| 25# | 4.8 x 1.6 (mm) | 1.967 | 0.197-1180 | ||||
|
17# |
6.4 x 1.6 (mm) | 3.333 | 0.333-2000 | ||||
| 18# | 7.9 x 1.6 (mm) | 4.3 | 0.430-2580 | ||||
| EasyPumpII/IV Single Channel |
15# | 4.8 x 2.4 (mm) | 1.8 | 0.180-1080 | |||
| 24# | 6.4 x 2.4 (mm) | 2.733 | 0.270-1.640 | ||||
| 35# | 7.9 x 2.4 (mm) | 3.833 | 0.383-2300 | ||||
| 36# | 9.6 x 2.4 (mm) | 5.167 | 0.517-3100 | ||||
| EasyPumpV/VI Dual Channel |
13# | 0.8 x 1.6 (mm) | 0.053 | 0.0053-32 | |||
| 14# | 1.6 x 1.6 (mm) | 0.27 | 0.027-162 | ||||
| 19# | 2.4 x 1.6 (mm) | 0.55 | 0.055-330 | ||||
| 16# | 3.1 x 1.6 (mm) | 0.933 | 0.093-560 | ||||
| 25# | 4.8 x 1.6 (mm) | 1.967 | 0.197-1180 | ||||
Parameters Filling Volume Reference
| Drive | Pump Head | Tubing | Filling Volume (mL) | Filling Times(s) | Accuracy | Output (pcs/min) | Motor Speed (rpm) | |
| Size | IDxWall Thickness | |||||||
| HPM600 | EasyPump | 13# | 0.8 x 1.6 (mm) | 0.4 | 1.2 | 0,8 | 27 | 377.36 |
| 13# | 0.8 x 1.6 (mm) | 1 | 2.5 | 0.5 | 17 | 452.83 | ||
| 14# | 1.6 x 1.6 (mm | 2 | 1 | 0.5 | 30 | 444.44 | ||
| 19# | 2.4 x 1.6 (mm) | 5 | 1.2 | 0.5 | 27 | 454.55 | ||
| 16# | 3.1 x 1.6 (mm) | 7 | 1 | 0.5 | 30 | 450.16 | ||
| 25# | 4.8 x 1.6 (mm) | 10 | 0.8 | 0.8 | 33 | 381.29 | ||
| 25# | 4.8 x 1.6 (mm) | 15 | 1 | 0.5 | 30 | 457.55 | ||
| 25# | 4.8 x 1.6 (mm) | 20 | 1.5 | 0.5 | 24 | 406.71 | ||
|
17# |
6.4 x 1.6 (mm) | 30 | 1.2 | 0.5 | 27 | 450.05 | ||
| 18# | 7.9 x 1.6 (mm) | 50 | 1.5 | 0.5 | 24 | 465.12 | ||
| 15# | 4.8 x 2.4 (mm) | 15 | 1.2 | 0.5 | 27 | 416.67 | ||
| 24# | 6.4 x 2.4 (mm) | 20 | 1.2 | 0.5 | 27 | 365.90 | ||
| 35# | 7.9 x 2.4 (mm) | 30 | 1.2 | 0.5 | 27 | 391.34 | ||
| 36# | 9.6 x 2.4 (mm) | 50 | 1.5 | 0.5 | 24 | 387.07 | ||
| 2*EasyPump | 13# | 0.8 x 1.6 (mm) | 0.5 | 0.8 | 0.8 | 33 | 353.77 | |
| 13# | 0.8 x 1.6 (mm) | 1 | 1.2 | 0.5 | 27 | 471.70 | ||
| 14# | 1.6 x 1.6 (mm) | 2 | 1 | 1 | 38 | 370.37 | ||
| 19# | 2.4 x 1.6 (mm) | 5 | 0.6 | 0.5 | 24 | 370.37 | ||
| 16# | 3.1 x 1.6 (mm) | 10 | 1.5 | 0.5 | 27 | 454.55 | ||
| 25# | 4.8 x 1.6 (mm) | 15 | 1.2 | 0.5 | 27 | 401.93 | ||
| 25# | 4.8 x 1.6 (mm) | 20 | 1.2 | 0.5 | 24 | 428.72 | ||
| 25# | 4.8 x 1.6 (mm) | 30 | 1.5 | 0.5 | 30 | 457.55 | ||
| 17# | 6.4 x 1.6 (mm) | 50 | 1 | 0.5 | 30 | 450.05 | ||
| 18# | 7.9 x 1.6 (mm) | 70 | 1 | 0.5 | 30 | 488.37 | ||
| 15# | 4.8 x 2.4 (mm) | 30 | 1 | 0.5 | 27 | 416.67 | ||
| 24# | 6.4 x 2.4 (mm) | 50 | 1.2 | 0.5 | 27 | 457.37 | ||
| 35# | 7.9 x 2.4 (mm) | 70 | 1.2 | 0.5 | 27 | 456.56 | ||
| 36# | 9.6 x 2.4 (mm) | 100 | 1.5 | 0.5 | 24 | 387.07 | ||
| Weight | 6.2 kg |
| Material | Aluminium alloy |
| CE marking | Yes |
| IP-Rating | IP66 |
| Speed | 0.1 - 600 rpm |
| Flow rate | 0.0053 to 3100 m/min |
| Power supply | AC100-220V +/-10%, 50/60 Hz |
| Operating Temperature | 0-40 ℃ |
| Relative humidity | < 100% |
| Size (Length) | 274 mm |
| Size (Height) | 221 mm |
| Size (Width) | 160 mm |
| Caption | Representative image only |
| Title | Type | Size | Download |
|---|---|---|---|
| HPM600-EasyPump-IP66-Industrial-Peristaltic-Pump-Datasheet-2025.pdf | 1.40MB | Download |
