The dPOFLEX GP02 cased peristaltic pump from Longer is a high flow rate industrial pump primarily designed for use in biopharma and industrial productions.
It can deliver flow rates between 1.1 ml/min ~ 9.0 L/min and the dosing volume is from 1.0 ml to 274.9 liters, depending on which pump head and tubing it is equipped with.
The GP02 peristaltic pump is cased in a cast aluminium housings and has an IP66 rating, which makes it suitable for operation in dusty and humid industrial environments.
The pump supports fieldbus communication control, digital signal control, analog signal control and pump status output. Furthermore, it is equipped with a 3.5" LCD screen that shows the menu and operating parameters, which can be set via the keyboard or by an external signal.
The pump meet 21CFR Part 11 and GMP laboratory requirements. And it has a three-level user access management system, with electronic signatur and audit trial functions.
As a standard, the dPOFLEX GP02 peristaltic pump comes with tubing compressed detection however, in order to achieve further preventive maintenance, it is possible to integrate other types of sensors such as: actual flow rate measurement and fluid pressure measurement.
| Pump drive model | dPOFLEX0 GP02 | |
| Housing material | Cast aluminium | |
| Speed range | 0.1 rpm - 300 rpm, CW/CCW | |
| Speed resolution | 0.1 rpm | |
| Display | 3.5" LCD, Chinese or English | |
| Clock function | Clock can be set for log record, and displayed on the running screen | |
| Work mode | Flow rate mode, dispensing mode, calibration mode | |
| Flow rate mode | The pump runs continuously at the set flow rate. It displays the flow rate and pump speed on the screen. | |
| Flow rate range | 1.1 ml/min - 9.0 L/min (depending on the pump head and tubing size/material） | |
| Dispensing mode | The pump repeats the dispensing at a set volume, cycles and interval time and back suction parameter,. It displays the single volume, dispensed volume and dispensed cycles/target cycles on the screen. |
|
| Volume of a single dose | 1.0 ml - 274.9 liters (depending on the pump head and tubing size/material） | |
| Dispensing cycles | 1-9999 (0 for unlimited) | |
| Interval time | 1 sec. to 9999 sec. | |
| Calibration function | Improves the flow rate and dispensing volume accuracy. | |
| Control mode | Keypad control, external signal control and communication control. | |
| Communication control |
Interface RS485 that support Modbus RTU mode - standard |
|
| Remote control | Speed control: 0-10V, 4-20mA Start/stop, direction control: 5V-24V logic level signal or relay signal (dry contact) |
|
| Status output | Running/stop fault status: relay signal (dry contact) | |
| Tubing compressed detection |
The pump will automatically stop when it detects the tubing is not compressed well, |
|
| Actual flow rate measurement | Measure and displays the flow rate by connecting ultra sonic flow meter (optional, can be ordered) | |
| Fluid pressure measurement | Measure and displays the fluid pressure inside the tubing by connecting a pressure sensor (optional) | |
| Pump status when power on | Pump stops or runs in the flow rate mode. Pump stops in the dispensing mode | |
| Keypad security lock function | Enable the keypad lock function to lock the keypad automatically after 20 sec. standby. (The start/stop button will not be locked) |
|
| User access control | Three levels of user access (administrator, technician, operator) | |
| Electronic signature and audit trail | Meet the requirement of FDA 21CFR Part 11 | |
| Log record | Record 90 days operation history, which can be exported directly. | |
| Support IQ/OQ | Meet GMP requirement | |
| Certificates |
EN 61010-1:2010, EN IEC 61010-2-201 |
|
| Dimensions (L x W x H) | 215 x 358 x 243 mm (drive only) | |
| Power supply (Dual voltage) | AC100-240V/115W 50/60Hz | |
| Operating condition | Temperature: 5℃-40℃ Relative humidity ≤100% |
|
| IP-rating | IP66 (cased pumps) | |
| Weight (drive only) | ≤10.4kg | |
| Pump model | Pump head | Number of rollers | Tubing size # | Tubing dimensions Inner diameter x wall thickness (mm) |
Reference max. flow rate (l/min) (meassured with water) |
| dPOFLEX GP02 (05.02.83A) dPOFLEX BP02 (05.02.84A) |
KZ35-13-D |
3 | 26 | 6,4 x 3,2 | 2 |
| 73 | 9,5 x 3,3 | 3 | |||
| 82 | 12.7 x 3.3 | 4.5 | |||
| 82A | 14.5 x 3.2 | 8 | |||
| 184 | 15,9 x 3,2 | 9 | |||
YZ35-13-D |
3 |
73 |
9,5 x 3,3 | 3 | |
| 82 | 12.7 x 3.3 | 4.5 | |||
| 82A | 14.5 x 3.2 | 8 | |||
| YZ35-13-F | 3 | 26 | 6.4 x 3.2 | 2 |
| Weight | 21 kg |
| Material | Cast aluminum |
| CE marking | Yes |
| IP-Rating | IP66 |
| Speed | 0,1 - 265 rpm |
| Flow rate | 1.1 - 17000 ml/min |
| Power supply | AC100-240V 50/60Hz |
| Operating Temperature | 0-40°C |
| Relative humidity | <100 % |

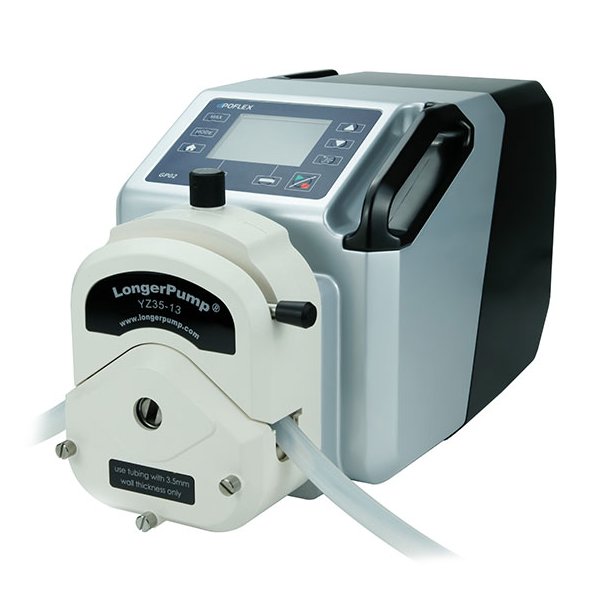

| Caption | Representative image only |
