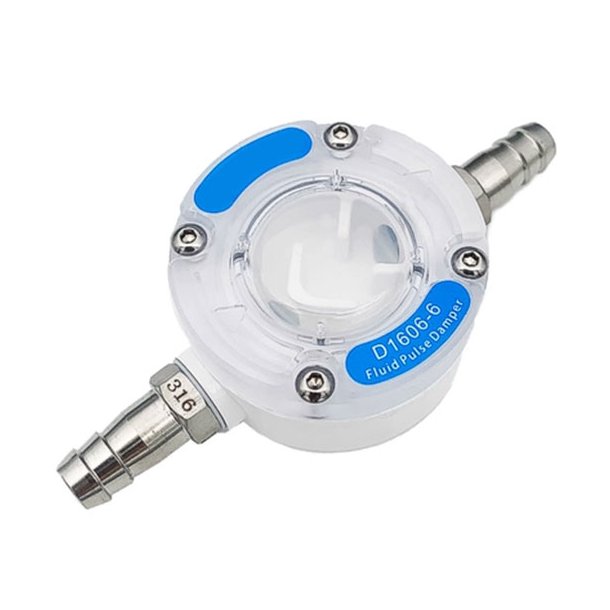

(excl. VAT)Fluid Pulse Damper – Universal Version
The universal version of the fluid pulse damper is designed to reduce pulsating flow from peristaltic pumps and other applications where stable liquid transfer is essential.
With housing in PC or POM, silicone diaphragm and SS316 hose barb, this version is suitable for laboratories, chemical applications and general fluid systems. The universal version is compatible with ETO and steam sterilization up to 121°C and complies with RoHS requirements.
The fluid pulse damper achieves more than 95% damping efficiency, and by using two units in series, pulsation can be reduced by more than 99%.
Main features
- Reduces pulsation in peristaltic pumps and other pump systems with pulsating flow
- Damping efficiency >95%
- Compatible with ETO and steam sterilization at 121°C
- Robust construction with PC/POM housing and SS316 hose barb
- RoHS compliant
Technical specifications
General specifications
- Maximum working pressure: ≤0.3 MPa
- Maximum working temperature: 130°C
- Mounting: horizontal, vertical or side mounting
- Connection: SS316 hose barb
PC version
PC + silicone diaphragm + SS316 hose barb
- D1606-3NB-PC-316: for tubing size 13# (ID 0.8 mm) and 14# (ID 1.6 mm), barb OD 2.6 mm
- D1606-3ND-PC-316: for tubing size 19# (ID 2.4 mm) and 16# (ID 3.1 mm), barb OD 5.0 mm
- D1606-6NB-PC-316: for tubing size 25# (ID 4.8 mm) and 15# (ID 4.8 mm, WT 2.4 mm), barb OD 7.0 mm
- D1606-6ND-PC-316: for tubing size 17# (ID 6.4 mm), 24# (ID 6.4 mm, WT 2.4 mm), 18# (ID 7.9 mm) and 35# (ID 7.9 mm, WT 2.4 mm), barb OD 10.0 mm
POM version
POM + silicone diaphragm + SS316 hose barb
- D1606-10-POM-316: for tubing size 36# (ID 9.6 mm, WT 2.4 mm) and 73# (ID 9.6 mm, WT 3.3 mm), barb OD 12 mm
- D1606-12-POM-316: for tubing size 82# (ID 12.7 mm) and 88# (ID 12.7 mm, WT 4.8 mm), barb OD 15 mm
- D1606-25-POM-316: for tubing size 92# (ID 25.4 mm, WT 4.8 mm), barb OD 16–32 mm
