Peristaltic Flow Rate Pump for Simple Dosing with Timer Function

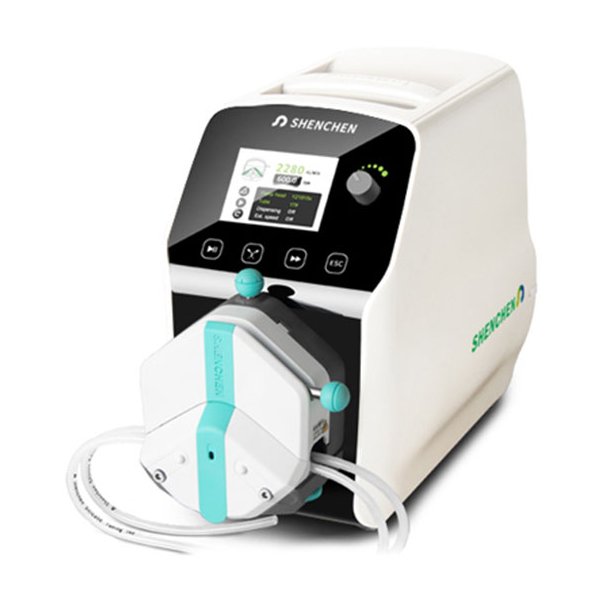

LabN3 is a peristaltic flow rate pump with ABS plastic housing. The pump is particularly suitable for university and research laboratories where simple dispensing is needed. You have the possibility to adjust the speed range from 0.1 to 350 rpm and the flow rate can be set between 0.0053 and 1808 ml/min/channel. You can choose from 2 different types of pump heads and up to 2 pump heads can be mounted on the pump. The LCD display gives you an overview of current dispensing values and as an extra functionality there is a timer function for the dosing. LabN3 has low vibrations and low noise.
You can set the flow rate in ml/min and the speed in rpm on the LabN3.
Technical Specifications
- Flow rate range: 0.0053 - 1808 ml/min/channel
- Speed range: 0.1-350 rpm
- Speed resolution: 0.1 rpm
- Flow rate accuracy: 0.5 ~ 1.0 %
- Back angle suction: 0-360°
- Outlet pressure:
- 0.8~1.0 mm wall thickness tubing: 0,1 Mpa (1 bar)
- 1.6~2.4 mm wall thickness tubing: 0.1~0.27 Mpa (1~2.7 bar)
- Display: 3,2" high definition LCD screen
- Dosing: Simple timer function for single dispensing.
- Timer setting range: 0.1–9999 seconds.
- Time units: Seconds, minutes, or hours.
- Control method: Turn button and mechanical keypad
- Speed control: Turn button
- External speed control signal: 0-5V, 0-10V, 4-20 mA
- Start/stop, direction signal: Passive switch signal, such as foot pedal. Active switch signal: 5V, 12V, 24V
- Communication interface: RS232, RS485 support, MODBUS protocol (RTU mode)
- Output interface: Output motor working status (open-collector output)
- Motors:
- LabN3: 57-56 stepper motor
- LabN3-II: 57-76 stepper motor
- LabN3-III: Servo motor
- Power supply: AC 220V +10% 50 Hz/60 Hz (standard), AC 110V + 10% 50 Hz/60 Hz (optional)
- Housing material: ABS plast
- Dive dimension: (LxWxH): 261.4x157.3x237 mm
- Power consumption: <50 W
- Condition temperature: 0-40°C
- Relative humidity: <80%
- IP rate: IP31
Operating Manual
- Supplied with English operating manual
Parameters
| Drive | Pump head | Tubing size (#) | Inner diameter x wall thickness (mm) | Flow rate (ml/min/channel) at 0.1 - 350 rpm (measured with water) |
| LabN3 | YZ1515x 1 channel with 3 rollers |
13 | 0.8×1.6 | 0,007 -24,5 |
| 14 | 1.6×1.6 | 0,027 - 94,5 | ||
| 19 | 2.4×1.6 | 0,055 - 192,5 | ||
| 16 | 3.1×1.6 | 0,082 -287 | ||
| 25 | 4.8×1.6 | 0,17 - 595 | ||
| 17 | 6.4×1.6 | 0,29 - 1.015 | ||
| 18 | 7.9×1.6 | 0,38 - 1.330 | ||
| YZ2515x 1 channel with 3 rollers |
15 | 4.8×2.4 | 0,17 - 595 | |
| 24 | 6.4×2.4 | 0,29 - 1.015 | ||
| EasyPumpIII 1 channel with 4 rollers |
13 | 0.8×1.6 | 0.0053~19 | |
| 14 | 1.6×1.6 | 0.027~95 | ||
| 19 | 2.4×1.6 | 0.055~193 | ||
| 16 | 3.1×1.6 | 0.093~327 | ||
| 25 | 4.8×1.6 | 0.197~688 | ||
| 17 | 6.4×1.6 | 0.333~1167 | ||
| 18 | 7.9×1.6 | 0.430~1505 | ||
| EasyPumpIV 1 channel with 4 rollers |
15 | 4.8×2.4 | 0.180~630 | |
| 24 | 6.4×2.4 | 0.273~957 | ||
| 35 | 7.9×2.4 | 0.383~1342 | ||
| 36 | 9.6×2.4 | 0.517~1808 | ||
| EasyPumpVI 2 channels with 4 rollers |
13 | 0.8×1.6 | 0.0053~19 | |
| 14 | 1.6×1.6 | 0.027~95 | ||
| 19 | 2.4×1.6 | 0.055~193 | ||
| 16 | 3.1×1.6 | 0.093~327 | ||
| 25 | 4.8×1.6 | 0.197~688 |
Pump Head Materials
- PPS (Poyphenylene sulfide material) is black and can resist organic solvent corrosion. It is suitable for industrial use and bad working conditions. It has high rigidity and precision. The PPS material can resist temperatures of 200 ℃
Video
How to calibrate the LabN3-III peristaltic pump
How to use the timer dispensing function on the LabN3-III peristaltic pump
Full speed and reverse fuction on the LabN3-III peristaltic pump
How to set the pump head and tubing size on the LabN3-III peristaltic pump
How to adjust the flow rate on the LabN3-III peristaltic pump while transferring
| Weight | 4.40 kg |
| Material | ABS plastic housing |
| CE marking | Yes |
| IP-Rating | IP31 |
| Speed | 0.1 - 350 rpm |
| Flow rate | 0.0053 ml/min - 1808 ml/min/kanal |
| Power supply | AC220V +10%, 50Hz/60Hz (standard) |
| Operating Temperature | 0-40°C |
| Relative humidity | < 80% |
| Size (Length) | 261.4 mm |
| Size (Height) | 237 mm |
| Size (Width) | 261.4 mm |
| Caption | Representative image only |
| Title | Type | Size | Download |
|---|---|---|---|
| LABN-EasyPump-Peristaltic-Pump-2022.pdf | 1.60MB | Download | |
| LabN-series_peristaltic-pump_2020-1.pdf | 2.10MB | Download | |
| LabN-III-Peristaltic-Pump.pdf | 1.60MB | Download | |
| LABN-III-EasyPump-Peristaltic-Pump-2022.pdf | 1.60MB | Download | |
| LabN3--Basic-Peristaltic-Pump-2023--Driftob.pdf | 672.56KB | Download |
