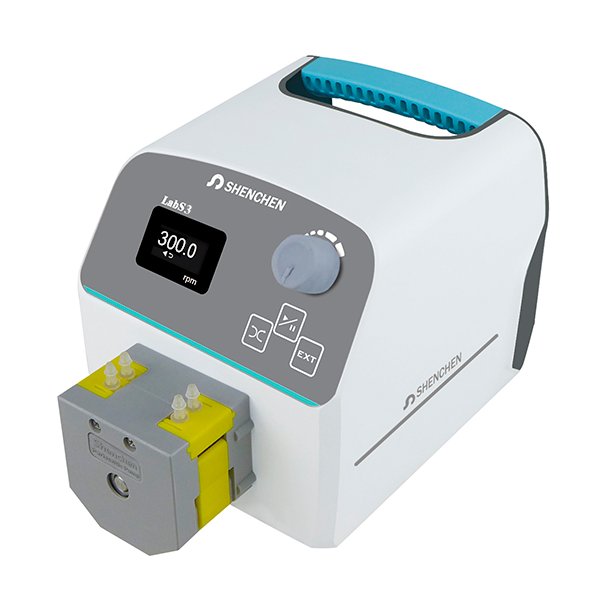

Compact peristaltic pump with low flow rate
LabS3 is a compact, simple and low vibration peristaltic pump with an ABS plastic housing. This pump will be phased out and replaced by the silent LabT pump.
At flow rates between 0.1 - 300 rpm you have the ability to run at custom speeds for your application.
The OLED display gives you an easy overview of speed, direction and external control.
This pump must be ordered with the pump head you need for your application as it is not easy to replace afterwards.
Technical Specifications
- Flow rate range: 0.0024-190 ml/min/channel
- Speed range: 0.1 - 300 rpm
- Speed resolution: 0.1 rpm
- Display: 0.96 "OLED display
- Operation: Rotary switch and mechanical keypad
- Speed control: Rotary switch
- External signal for speed control: 0-5V, 4-20 mA (standard), 0-10V (optional)
- External signal for start / stop and direction: Switch signal
- Communication interface: USB connector, RS485 support (MODBUS protocol, RTU mode)
- Power supply: DC 24V / 1A with power adapter
- Pump housing material: ABS plastic
- Pump housing dimensions: (LxDxH): 190x128,3x135 mm
- Operating temperature: 0-40°C
- Relative humidity <80%
- IP rate: IP31
- Weight: 1.1 kg
Operating Manual
- Supplied with English operating manual
Parameters
| Motor | Pump head | Tubing size (#) | Tubing dimensions Inner diameter x wall thickness (mm) |
Flow rate (ml/min/channel) at 0.1 - 300 rpm (measured with water) |
| LabS3 | MiniPump01 | 13# | 0.8 × 1.6 | 0.0028 - 8.28 |
| MiniPump01 | 14# | 1.6 × 1.6 | 0.0113 - 33.88 | |
| MiniPump01 | 19# | 2.4 × 1.6 | 0,026 - 77.23 | |
| MiniPump01 | 16# | 3.2 × 1.6 | 0.038 - 114.31 | |
| MiniPump01 | 25# | 4.8 × 1.6 | 0.063 - 190.00 | |
| MiniPump02 | 1 x 1 | 0.005 - 15.01 | ||
| MiniPump02 | 2 x 1 | 0.182 - 54.63 | ||
| MiniPump02 | 2.5 x 1 | 0.256 - 76.84 | ||
| MiniPump02 | 3 x 1 | 0.036 - 108.39 |
Pump head information
- The MiniPump01 pump head has 1 channel, and 5 different sizes of PharMed tube sets with holders are included.
- The MiniPump02 pump head has 2 channels, and 4 different sizes of PharMed tube sets with holders are included.
Video
Peristaltic pump LabS3
How to change the tubing in the Minipump01
| Weight | 1.1 kg |
| Material | ABS plastic housing |
| CE marking | Yes |
| IP-Rating | IP31 |
| Speed | 0.1 - 300 rpm |
| Flow rate | 0.0024 ml/min - 76,84 ml/min/channel |
| Power supply | DC 24V/1A |
| Operating Temperature | 0-40°C |
| Relative humidity | < 80% |
| Size (Length) | 190 mm |
| Size (Height) | 135 mm |
| Size (Width) | 128.3 mm |
| Caption | Representative image only |
| Title | Type | Size | Download |
|---|---|---|---|
| LabS-Minpump-manual_2019.pdf | 518.52KB | Download | |
| LabS-Series-MODBUS-protocol.pdf | 250.64KB | Download | |
| Minipump-English-Shenchen-20.6.12.pdf | 529.65KB | Download | |
| LabS3-peristaltic-pump_2020.pdf | 926.40KB | Download | |
| LabS3--Basic-Peristaltic-Pump-2023-Drifton.pdf | 512.20KB | Download |
