Innovalene 4365 chemical-resistant pump tubing

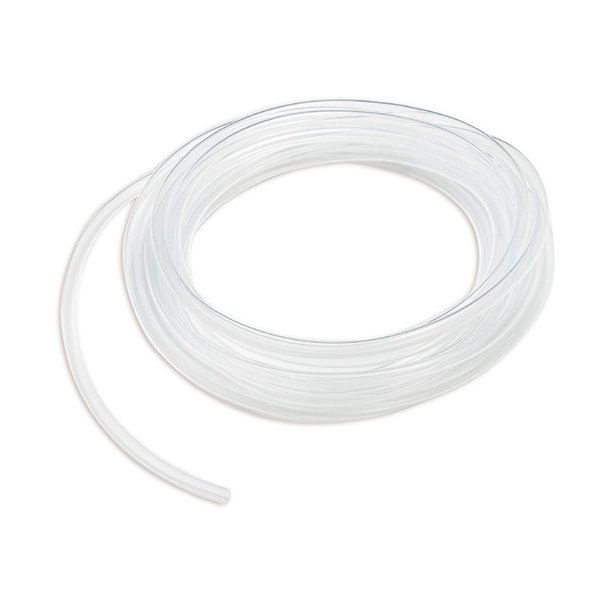

Representative image only

Innovalene 4365 chemical-resistant pump tubing

Price from EUR 94.70

(excl. VAT)

Innovalene 4365 is a chemical-resistant, transparent pump tubing for peristaltic pumps, made from thermoplastic elastomer. The tubing is suitable for transferring chemical reagents and other corrosive liquids and features low gas permeability.

  • Transparent
  • Chemical-resistant with good resistance to acids, alkalis, ketones, and alcohols, as well as grease and fuel
  • Suitable for use with a peristaltic pump
  • Smooth inner surface that reduces “hanging liquid” and microbial residue and minimizes cross-contamination risk
  • The material is recyclable and plasticizer-free
  • Operating temperature range: -73 °C to +93 °C

The tubing is available in multiple sizes.

The tubing can be ordered even if the required size is not in stock. Lead time is then approximately 3–4 weeks.

Read more
Innovalene 4365 chemical-resistant pump tubing
Items

Price
Note
Quantity
  • 14#: WT 1.59 mm, ID 1.59mm, OD 4.76 mm, 15 m

    Dimensions: 14#: WT 1.59 mm, ID 1.59mm, OD 4.76 mm, 15 m

    Model/Product no.: L436-201-0159-0318

    EUR 94.70

    (excl. VAT)

    Not in stock

    Weight: 0.6 kg

  • 16#: WT 1.59 mm, ID 3.18mm, OD 6.35mm, 15 m

    Dimensions: 16#: WT 1.59 mm, ID 3.18mm, OD 6.35mm, 15 m

    Model/Product no.: L436-201-0318-0635

    EUR 98.80

    (excl. VAT)

    1 pcs. in stock

    Weight: 0.8 kg

  • 25#: WT 1.59 mm, ID 4.76mm, OD 7.94mm, 15 m

    Dimensions: 25#: WT 1.59 mm, ID 4.76mm, OD 7.94mm, 15 m

    Model/Product no.: L436-201-0476-0794

    EUR 118.10

    (excl. VAT)

    Not in stock

    Weight: 0.9 kg

  • 17#: WT 1.59mm, ID 6.35mm, OD 9.53mm, 15 m

    Dimensions: 17#: WT 1.59mm, ID 6.35mm, OD 9.53mm, 15 m

    Model/Product no.: L436-201-0635-0953

    EUR 146.60

    (excl. VAT)

    Not in stock

    Weight: 1 kg

  • 18#: WT 1.59mm, ID 7.94mm, OD 11.11mm, 15 m

    Dimensions: 18#: WT 1.59mm, ID 7.94mm, OD 11.11mm, 15 m

    Model/Product no.: L436-201-0794-1111

    EUR 207.40

    (excl. VAT)

    Not in stock

    Weight: 1.1 kg

  • 73#: WT 3.18mm, ID 9.53mm, OD 15.88mm, 15 m

    Dimensions: 73#: WT 3.18mm, ID 9.53mm, OD 15.88mm, 15 m

    Model/Product no.: L436-201-0953-1588

    EUR 453.00

    (excl. VAT)

    Not in stock

    Weight: 2.5 kg

  • 82#: WT 3.18mm, ID 12.70mm, OD 19.05mm, 15 m

    Dimensions: 82#: WT 3.18mm, ID 12.70mm, OD 19.05mm, 15 m

    Model/Product no.: L436-201-1270-1905

    EUR 548.50

    (excl. VAT)

    1 pcs. in stock

    Weight: 2.8 kg

Innovalene 4365 chemical-resistant pump tubing

Innovalene 4365 is a chemical-resistant, transparent pump tubing for peristaltic pumps, made from thermoplastic elastomer.

The tubing is designed for transferring chemical reagents and other corrosive liquids and features low gas permeability as well as Shore A 65 hardness.

Key features

  • Transparent tubing enabling visual monitoring of the media during operation
  • Chemical resistance, including resistance to grease, fuel, etc.
  • Good resistance to acids, alkalis, ketones, and alcohols
  • Suitable for use with a peristaltic pump
  • Plasticizer-free
  • Smooth inner surface that reduces “hanging liquid”, microbial residue, and minimizes cross-contamination risk
  • The material is recyclable and plasticizer-free
  • Available in multiple gauges/dimensions; gauges, lengths, or packing methods can be customized

Application areas

  • Industrial applications
  • Chemical applications
  • Laboratory and analytical work
  • Transfer of chemical solvents and chemical reagents

Technical specifications

  • Material: thermoplastic elastomer
  • Color: colorless and transparent
  • Operating temperature range: -73 °C to +93 °C
  • Shore A hardness (ASTM D2240): 65A
  • Density (ASTM D792): 0.86 g/cm³
  • Tensile strength (ASTM D412): 6.20 MPa
  • Elongation (ASTM D412): 1000%
  • Tear strength (ASTM D1004-94): 34 kN/m
  • Permanent compression set 70 °C / 22 h (ASTM D395): 25%
  • Compliance: RoHS, REACH

Sterilization

  • ETO (ethylene oxide), indicated as sterilized single time
  • 25 kGy irradiation, indicated as sterilization single time

Gas permeability

  • CO: 1140
  • O2: 76
  • N2: 190

Odor and toxicity

  • Odor: none
  • Toxicity: none

Theoretical service life

  • At 0 bar: 500 hours
  • At 0.7 bar: 200 hours

Handling

  • Avoid folding
  • Avoid high temperature
Colour Clear
Operating Temperature -35 °C to +75 °C
Size (Length) 15 Meters
Caption Representative image only

Category: Accessories

Items
Price
Note
Quantity
Title Type Size Download
Innovalene_4365_Datasheet-2025---DRIFTON.pdf PDF 501.54KB Download
Innovalene-4365-Peristaltic-Pump-Tubing-Datasheet---DRIFTON.pdf PDF 404.73KB Download
Innovapure-Catalogue-2025.pdf PDF 20.88MB Download
