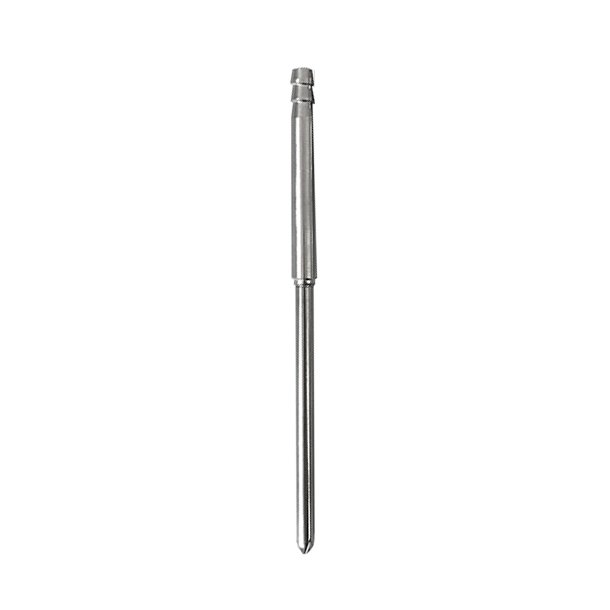

Anti-splash Filler Nozzles for tubing size 15# with ID 4.8 mm (GZT15B)

EUR 26.80

(excl. VAT)

The anti-splash filling nozzles have a special design, where the tip is divided into three oulets that split the flow into three streams that are led down the sides in the container, thereby minimizing splashing and foaming.

The anti-splash filling nozzles are very useful for liquids that have issues with foaming or splashing and they are primarily used in automatic filling machines.

Material

Stainless steel SS316L

Sizes

Tubing size 25# and 15# with internal diameter of 4.8 mm
Tubing size 17#, 24# and 26# with internal diameter of 6.4 mm
Tubing size 18# and 35# with internal diameter of 7.9 mm
Tubing size 36# and 73# with internal diameter of 9.6 mm
Tubing size 82# with internal diameter of 12.7 mm

You have chosen the following product variant:

Size:

size 15# with ID 4.8 mm (GZT15B)

See all variants

Choose variant

pcs.

These anti-splash filling nozzles are made of stainless steel SS316 and are used together with pump tubing in peristaltic pumps to improve filling accuracy and help minimizing foaming and splashing.

This type of anti-splash filling nozzles have a special design, where the tip is divided into three oulets that split the flow into three streams so that the liquid is led down the sides in container, thereby minimizing splashing and foaming.

Material

Stainless steel SS316L

Sizes

Typical applications

In automatic filling machines for filling liquids that have issues with foaming or splashing
