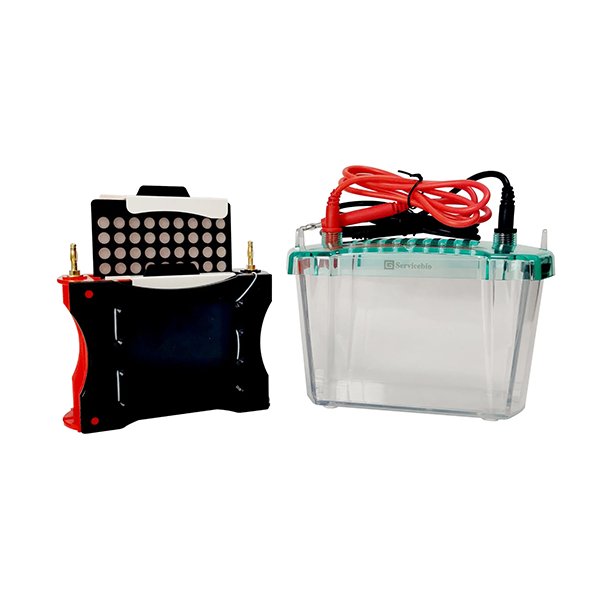

Transfer Electrophoresis Tank SVT-2
The SVT-2 is a transfer electrophoresis tank designed for use with the SVE-2 vertical electrophoresis system. It transfers proteins and nucleic acids from gel to membrane after electrophoresis, ensuring efficient, uniform, and reproducible protein transfer for laboratory applications.
Main Features
- Double-plate structure compatible with the SVE-2 electrophoresis system
- Integrated transparent polycarbonate tank with high corrosion resistance and durability
- Clearly marked positive and negative electrodes with ergonomic handle for safe and easy operation
- High transfer efficiency with typical transfer time of 20–40 minutes
- Robust construction; can be used with an ice bath to prevent overheating during operation
Technical Specifications
- Type: Transfer electrophoresis tank for use with SVE-2
- Dimensions (L × W × H): 185 × 108 × 125 mm
- Transfer size: 70 × 90 mm
- Maximum buffer volume: 500 ml
- Transfer time: Approx. 20–40 min
- Material: Transparent polycarbonate with high chemical resistance
- Cooling: Supports ice bath use for stable performance

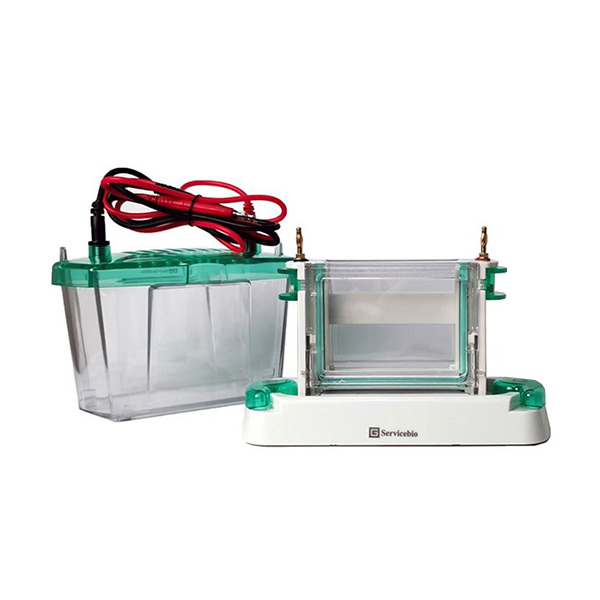

- Compatibility: For use with the SVE-2 vertical electrophoresis system
Warranty and Documentation
Supplied with an English user manual and compatible with the SVE-2 electrophoresis system, power supply, and accessories.
Videoes
How to operate the electrophoresis system SVT-2/SVE-2
